Model: V1600D4 Spec: 4 Port EPON OLT Weight: 3.4kg
Specifications
| Product introduction |

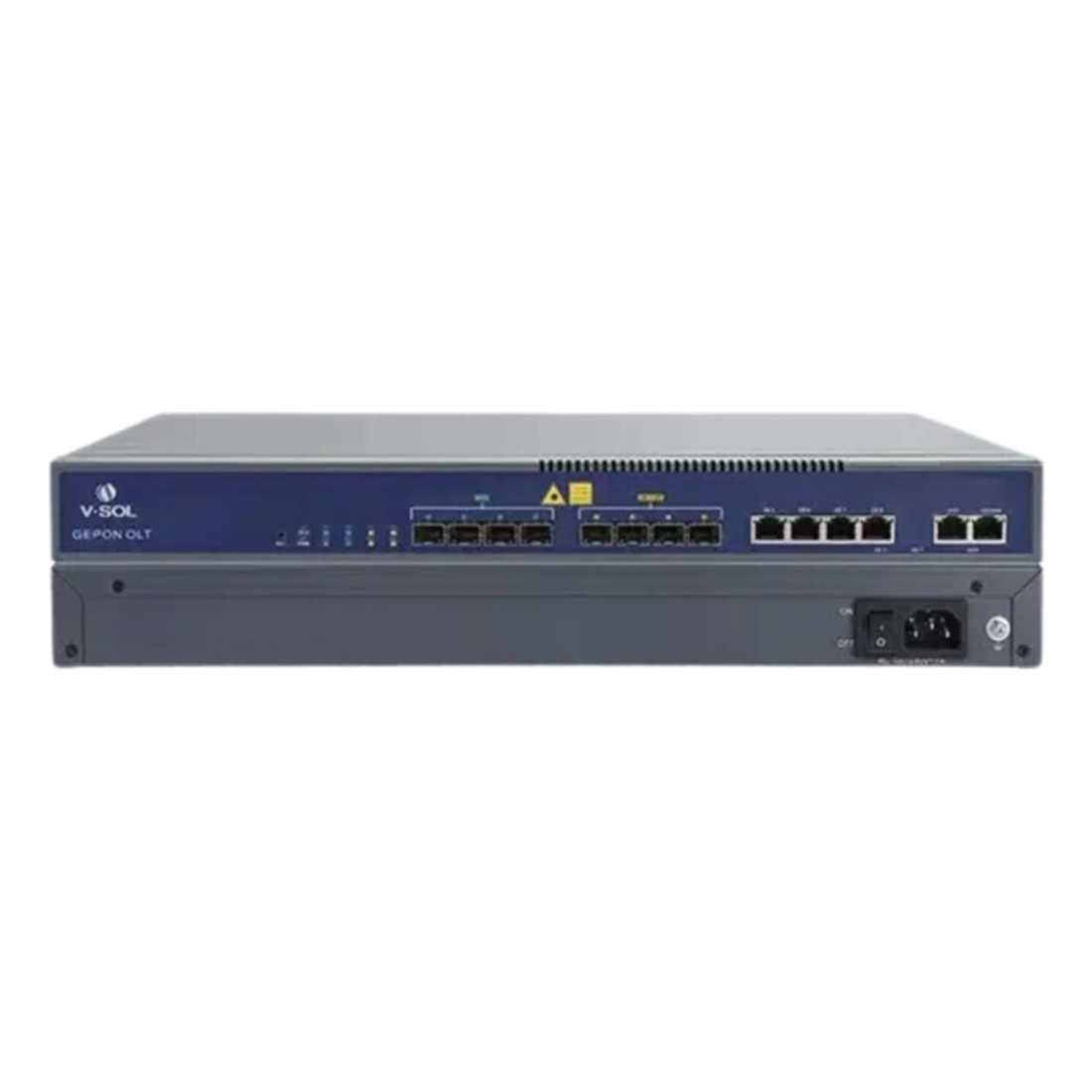

VSOL V1600D4 is a 1U height 19-inch rack mount product. The features of the OLT are small, convenient, flexible, easy to deploy, and high-performance. It is appropriate to be deployed in a compact room environment. The OLT can be used for “Triple-Play”, VPN, IP Camera, Enterprise LAN, and Internet service provider applications.
V1600D4 provides 4GE (copper) and 4*SFP/SFP+ slots independent interface for uplink, and 4*EPON OLT ports for downlink. It can support 256 ONUs with 64 ONUs per PON port.
| Technical Specifications |
| Item | V1600D4 | |
| Chassis | Rack | 1U 19 inch standard box |
| Uplink Port | QTY | 8 |
| RJ45 | 4 | |
| SFP/SFP+ | 4 | |
| EPON Port | QTY | 4 |
| Physical Interface | SFP Slots | |
| Max splitting ratio | 1:64 | |
| Supported PON module level | PX20, PX20+, PX20++, PX20+++ | |
| Backplane Bandwidth (Gbps) | 128 | |
| Port Forwarding Rate(Mpps) | 71.424 | |
| Dimension (LxWxH) | 442mm*200mm*43.6mm | |
| Weight | 3.2kg | |
| Power Supply | AC 100~240 V, 50/60 Hz | |
| Power Consumption | 30W | |
| Operating Environment | Working Temperature | -20~+60°C |
| Storage Temperature | -40~+70°C | |
| Relative Humidity | 5~95% (non-condensing) | |
