Product Description

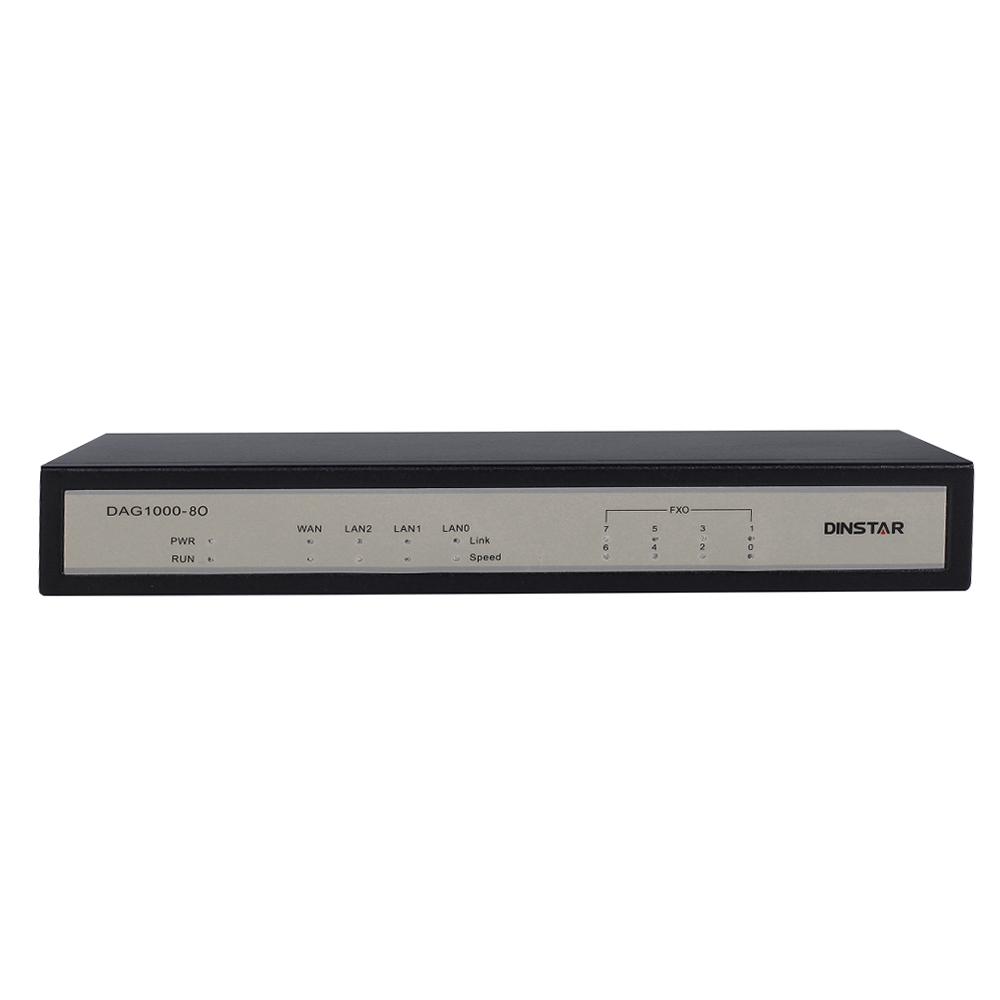

DAG1000-8O is an 8FXO gateway based on the SIP2.0 standard. Providing one WAN port and three LAN ports.
DATA SHEET
| Codec | G.711 Yes |
| Codec | G.729A Yes |
| Codec | Echo Cancellation Yes |
| Codec DTMF | Yes |
| Call forward/Caller ID | Yes |
| Call transfer | Yes |
| Call holding/waiting | Yes |
| 3 way conferencing | Yes |
| Call pickup | Yes |
| SIP info | V2.0 (RFC 3261,3262,3264) |
| SNTP Client | Yes |
| Network tools in telnet server | Supported |
| Power Input | 220VAC/50Hz/0.5A |
| Power | 15 W |
| Ethernet Interface | 4 10/100BASE-TX |
| Graphical User Interface (GUI) | Yes |
| Support Asterisk/Elastix/Free switch | Yes |
| G.723.1 Codec | Yes |
| Transport Protocol | TCP/UDP/RTP/RTCP |
| TFTP | Yes |
| DNS | Yes |
| HTTP | Yes |
| SNMP | Yes |
| E1/T1 Port | No |
| Fax and Modem | T.38/ Pass-Through/Modem, baud rate:14.4kbps |
| QoS | Tos / DSCP |
| Dial Plan | Yes |
| IP Trunk | Yes |
| Voice Packet Capabilities | CNG, VAD, G.168, AJB |
| Calling Type | Voice/ T.38/Pass-through/Modem FAX mode, Up to 14.4kbps |
| Quick pick | Yes |
| Hotline | Yes |
| DND | Yes |
| Voice Mail | Yes |
| Standard | Bellcore Type 1 &2, ETSI, BT, NTT and DTMF based CID |
| Dial Plan | Yes |
More Info
DAG1000-8O is an 8FXO gateway based on the SIP2.0 standard. Providing one WAN port and three LAN ports ,it allows up to four computers to share an ADSL line in office or at home.
Height |
35 mm |
Width |
150 mm |
Depth |
240 mm |
Weight |
1 kg |
FXO ports |
8 |
FXS ports |
No |
SIP VoIP Accounts |
Primary and Secondary |
WAN |
1 |
LAN |
3 |
VLAN |
Yes |
