Model: HG326N , Spec: 1GE+3FE+2POTS+WiFi+USB
Specifications
Product Description

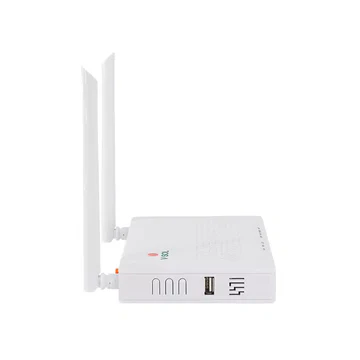

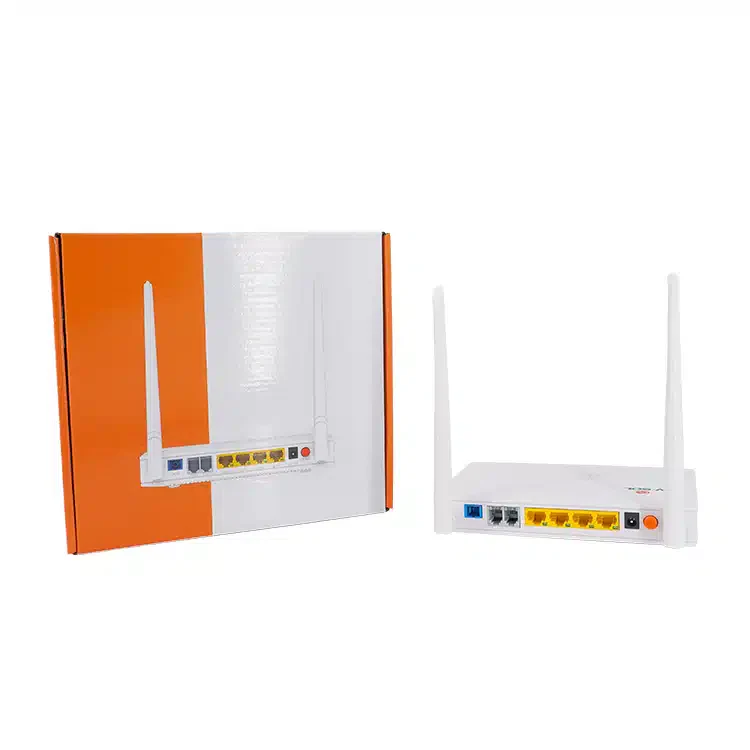

The HG326N is a versatile and feature-rich Optical Network Unit (ONU) device that offers a comprehensive and high-speed internet connectivity solution. With its advanced features and robust design, it is ideal for homes, small businesses, and enterprises.
Key Features:
-
1 Gigabit Ethernet (GE) port for high-speed internet access
-
3 Fast Ethernet (FE) ports for connecting multiple devices
-
2 POTS (Plain Old Telephone Service) ports for voice connectivity
-
WiFi support for wireless connectivity
-
USB port for connecting external devices or charging
-
Compact and wall-mountable design for easy installation
Technical Specifications:
-
Model: HG326N
-
Interface: 1 GE + 3 FE + 2 POTS + WiFi + USB
-
WiFi Standards: 802.11n
-
Power Supply: DC 12V, 1A
-
Dimensions: 180mm x 120mm x 30mm
-
Operating Temperature: 0°C to 40°C
-
Humidity: 5% to 90% non-condensing
Benefits:
-
High-speed internet access with Gigabit Ethernet port
-
Multiple device connectivity with 3 Fast Ethernet ports
-
Voice connectivity with 2 POTS ports
-
Wireless connectivity with WiFi
-
External device connectivity and charging with USB port
-
Compact and easy-to-install design
| Technical item | 1GE+3FE+2POTS+WiFi+USB |
| PON interface | 1 G/EPON port(EPON PX20+ and GPON Class B+) Wavelength:Tx1310nm,Rx 1490nm SC/UPC connector Receiving saturation:≥-8dBm Receiving sensitivity: ≤-28dBm Transmitting optical power: 0~+4dBm Transmission distance: 20KM |
| LAN interface | 1 x 10/100/1000Mbps and 3 x 10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector |
| Wireless | Compliant with IEEE802.11b/g/n Operating frequency: 2.400-2.4835GHz support MIMO, rate up to 300Mbps 2T2R,2 external antenna 5dBi Support: multiple SSID Channel:13 Modulation type: DSSS、CCK and OFDM Encoding scheme: BPSK、QPSK、16QAM and 64QAM |
| POTS interface | 2 FXS, RJ11 connector Support: G.711/G.723/G.726/G.729 codec Support: T.30/T.38/G.711 Fax mode, DTMF Relay Line testing according to GR-909 |
| USB interface | USB 2.0 |
| LED | 13, For Status of PWR、PON 、LOS、WAN、WiFi、FXS1~2、ETH1~4、WPS、USB. |
| Operating condition | Temperature: 0℃～+50℃ Humidity: 5%～90%（non-condensing） |
| Storing condition |
Temperature : -30℃～+75℃ Humidity :5%～90%（non-condensing） |
| Power supply | DC 12V,1/1.5A |
| Power consumption | ≤10W |
| Dimension | 205mm×140mm×37mm（L×W×H） |
| Net weight | 0.34Kg |
