Model: V2820D-1G3FPS , Sepc: 1×XPON+1×GE(POE+)+3×FE(POE+)
Description
Product

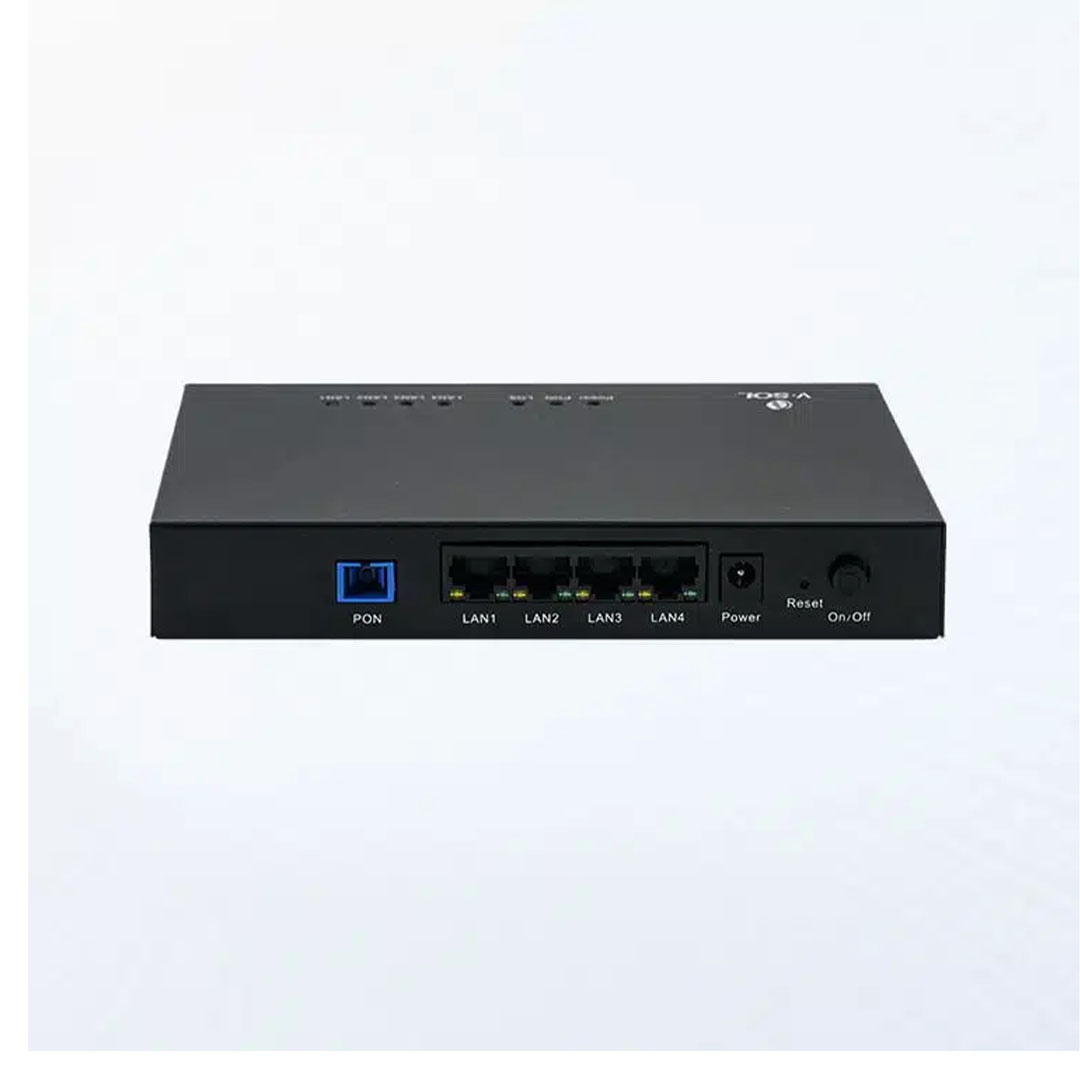

The V2820D-1G3FPS is a high-performance Optical Network Unit (ONU) device that offers a comprehensive and reliable internet connectivity solution. With its advanced features and robust design, it is ideal for homes, small businesses, and enterprises.
Key Features:
-
1 XPON port for high-speed optical connectivity
-
1 Gigabit Ethernet (GE) port with Power over Ethernet (PoE+) for powering devices
-
3 Fast Ethernet (FE) ports with PoE+ for connecting multiple devices
-
Compact and wall-mountable design for easy installation
Technical Specifications:
-
Model: V2820D-1G3FPS
-
Interface: 1 XPON + 1 GE (PoE+) + 3 FE (PoE+)
-
Power Supply: DC 12V, 1A
-
Dimensions: 180mm x 120mm x 30mm
-
Operating Temperature: 0°C to 40°C
-
Humidity: 5% to 90% non-condensing
Specifications
| ○ Hardware Parameter | |
| Dimension | 175mm×123mm×28mm（L×W×H） |
| Net weight | About 0.6kg |
| Operating condition | Temperature: -20°C ~ 50°C Operating humidity: 5 ~ 90% (non-condensed) |
| Storage condition | Storing temp: -30 ~ 60°C Storing humidity: 5 ~ 90% (non-condensed) |
| Power adapter | DC 48V, 1A |
| Power supply | ≤ 48W |
| Interface | 1×XPON+1×GE(POE+)+3×FE(POE+) |
| Indicators | 7, POWER,LOS,PON, LAN1~LAN4 |
| ○ Interface parameter | |
| PON Interface |
|
| Wavelength | TX 1310nm, RX 1490nm |
| Optical Interface | SC/UPC connector |
| User Interface |
|
| ○ Function Data | |
| Management |
|
| SFU |
|
| L2 |
|
| Multicast |
|
