Model: V2801F , Spec: 1*XPON+1*GE(SFP)
Description:

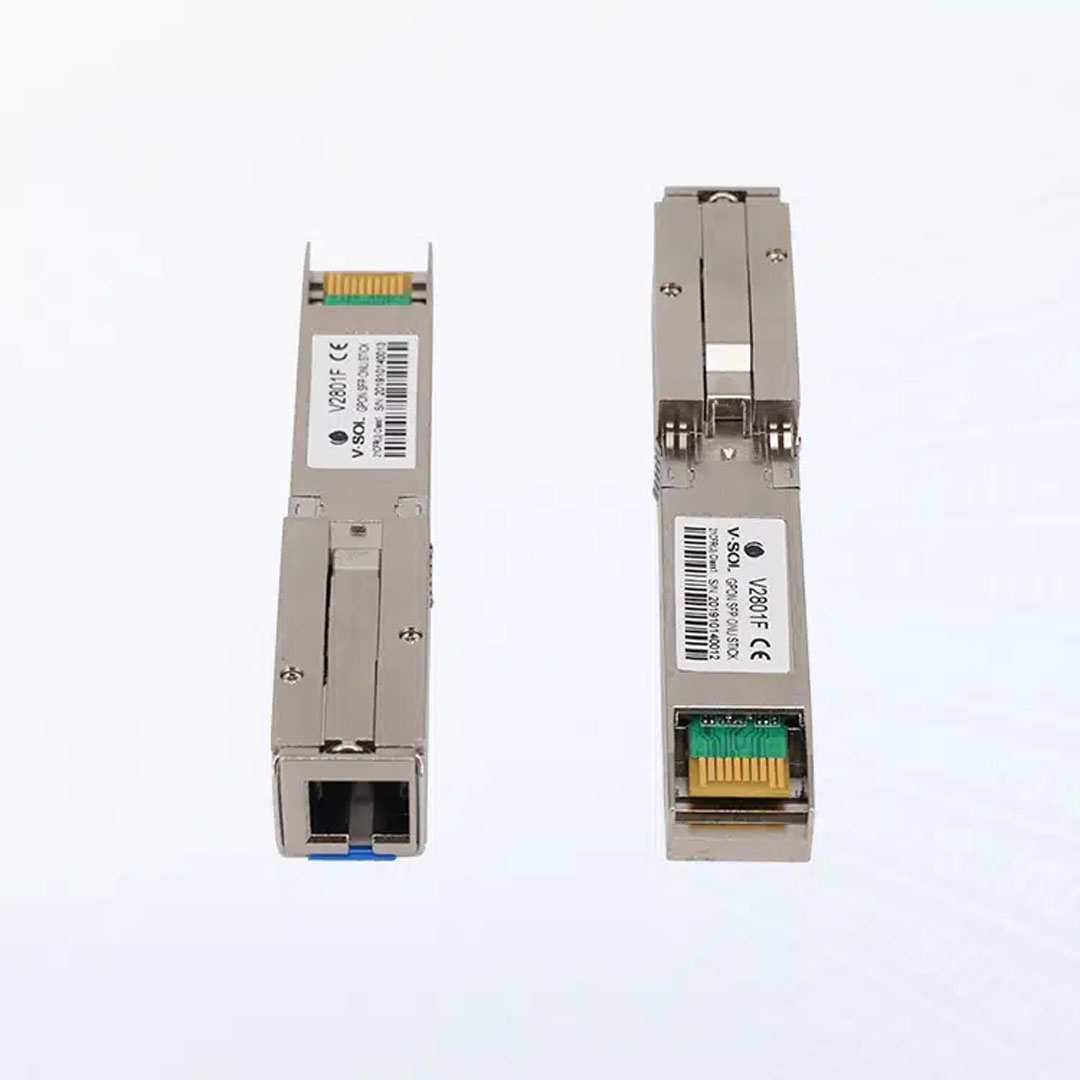

V2801F SFP ONT
The V2801F SFP (Small Form-Factor Pluggable) ONT (Optical Network Terminal) is a compact and flexible device that provides high-speed internet connectivity over fiber-optic networks. This SFP ONT is perfect for homes and small businesses seeking a reliable and cost-effective networking solution.
Key Features:
-
1 XPON Port: High-speed internet connectivity over fiber-optic networks
-
1 Gigabit Ethernet (SFP) Port: Flexible and hot-swappable connectivity option for devices
Product Specifications:
-
Model: V2801F
-
Type: 1XPON+1GE(SFP) SFP ONT
-
Specification: 1XPON+1GE(SFP)
This SFP ONT is designed to provide a robust and reliable internet connection, with the flexibility of SFP technology, making it an ideal choice for those seeking a high-performance and cost-effective device.
Specifications
| Hardware Parameter | |
| Dimension | 14.1mm×79mm×13.6mm(H×W×D) |
| Net weight | 35g |
| Operating condition | Temperature: 0℃～50℃
Humidity: 10%～90%（non-condensing） |
| Storing condition | Temperature :-30℃～60℃
Humidity :10%～90%（non-condensing） |
| Power supply | DC 3.3V |
| Power consumption | ≤ 4W |
| ○ Interface parameter | |
| PON interface | l 1 SC/UPC connector, PX20+ and Class B+
l Receiving sensitivity: ≤ -28dBm l Transmitting optical power: 0～+4dBm l Transmission distance: 20KM |
| Wavelength | Tx-1310nm, Rx-1490nm |
| Optical interface | SC/UPC connector |
| LAN interface | 1xGE Ethernet interfaces, SFP connector |
| ○ Function Data | |
| Satisfactory standard | l Meet IEEE802.3ah standard
l Meet ITU-T G.984.x l Meet China’s CTC3.0 standards |
| SFU ONU | l Bridging mode
l Well connect with mainstream OLT |
| L2 | l 802.1D&802.1ad bridging
l 802.1p CoS |
| L3 | l IPv4
l Forwarding PPPoE package |
| Multicast | Forwarding IGMPv2/v3 package |
