Performance characteristics

• Using erbium ytterbium co-doped double-clad fiber technology
• Built-in low noise preamplifier, EDFA cascading unnecessary, greatly reduces the deterioration of CNR and MER;
• Output port optional: LC connector32 ways optional.
• The front panel can be flexibly removed and replaced according to the number of output ports.
• The front panel key can set up and modify the device performance parameters to meet different network design requirements;
• The front panel indicator lights monitor and instruct the running status of device parameters in real-time, easy to find problems in time;
• The total output power is optional: the highest total output is 6.5W (38dBm) ;
• Low noise figure: < 6dB @ 0dBm input;
• The perfect network management interface conforms to the SNMP network management protocol;
• A dual power supply hot backup structure improves the system reliability;
• The output power +0.5~-4dBm is adjustable;
• The 144*32 blue dot matrix LCD is used to realize parameter on-site monitoring;

Applications

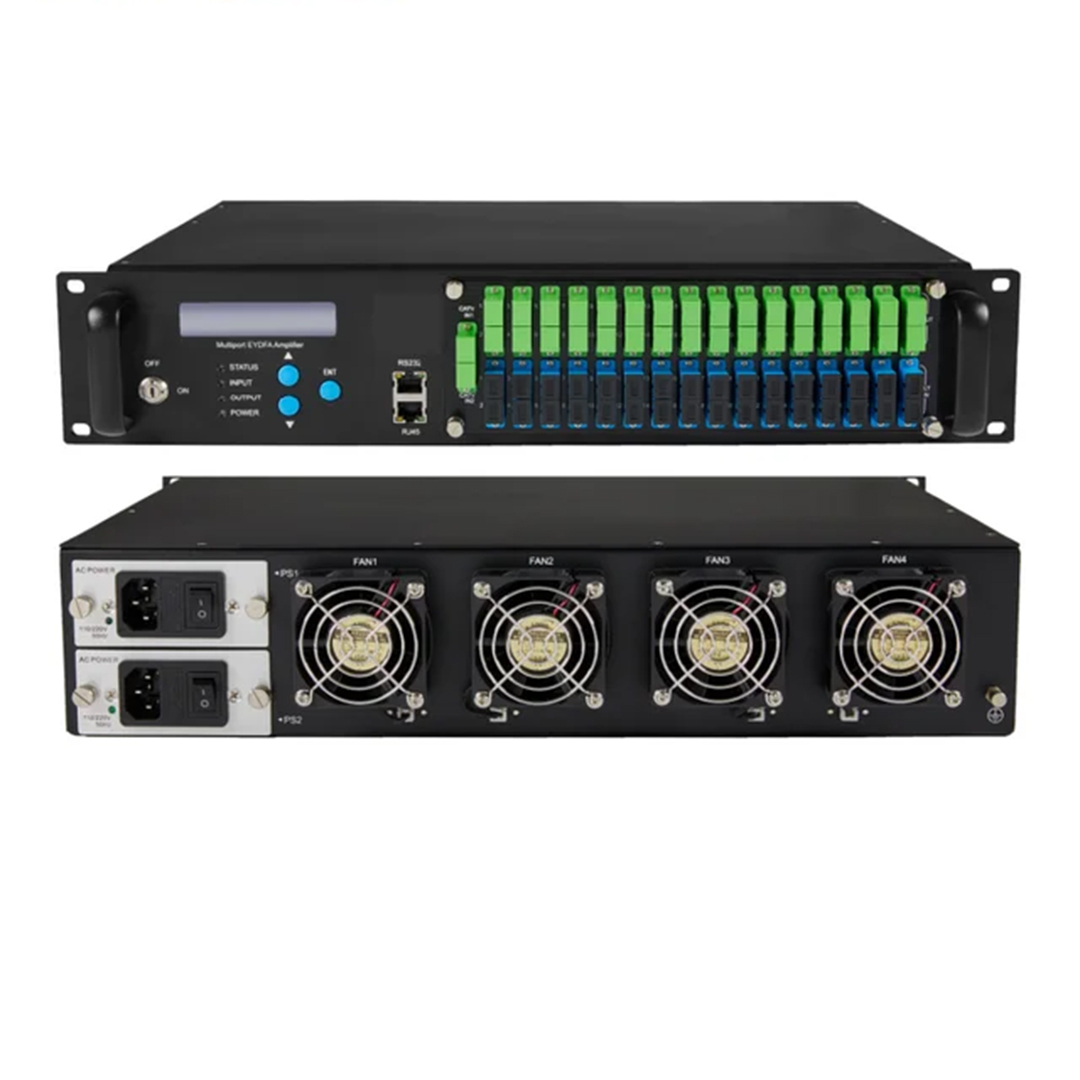

The 5xEYA1 series high-power optical amplifier is a high-power multi-port output fiber amplifier with a gain spectrum bandwidth of 1535~1565nm. It is mainly designed for applications of CATV or 1~8 continuous strip channels (ITU wavelengths). It provides a flexible, low-cost solution for large-scale FTTH coverage of CATV systems in large and medium-sized cities.
