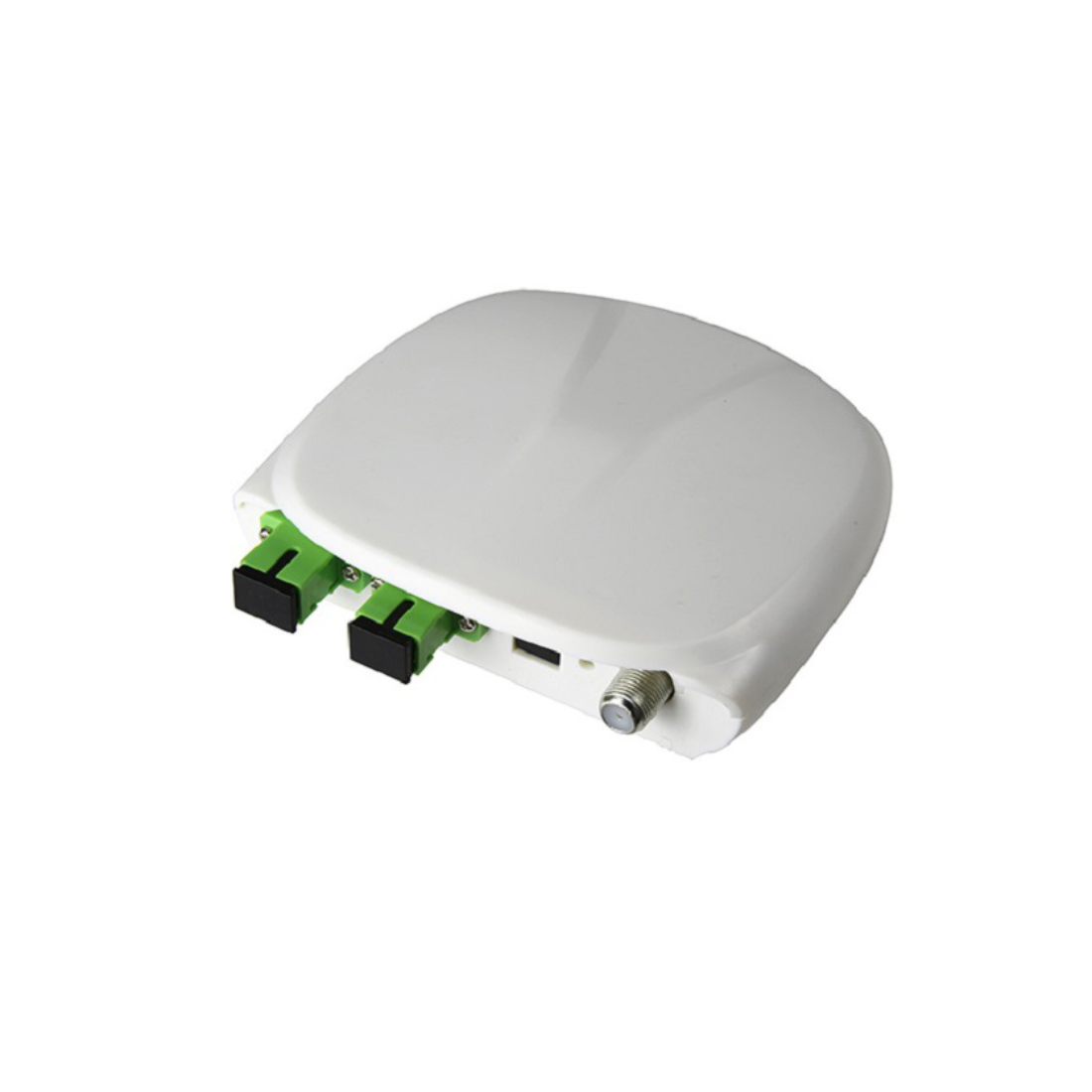

The INTECH-OR19 FTTH optical receiver is a home optical receiver with optical fiber access as its ultimate goal. It is suitable for FTTH (Fiber to the Home) network optical fiber subscriber access terminals, enabling analog or digital signals to enter the home. It is a home-made equipment that is tailored to realize triple play.
● RF channel full GaAs low noise amplifier circuit. The digital signal satisfies -18dBm reception and the analog signal satisfies -10dBm reception.
● With light input AGC function (AGC range can be customized).
● Anti-frequency surge protection device, GaAs amplification chip.
● Low-power design, high-efficiency switching power supply ensures high reliability and high stability of the power supply. The overall power consumption is less than 2W, with optical detection circuit.
● Built-in WDM to realize single-fiber home (1490/1310/1550nm) tri-network convergence application.
● FC/APC or SC/APCTM or FC/PC or SC/PC, metric or imperial RF interface (customizable according to customer requirements).
● Multi-stage lightning protection devices (TVS transient suppression diodes) and lightning protection systems ensure the safe operation of the equipment.
● Output power supply can be achieved.
