Model: V1600G1-B Spec: 8*GPON,4GE(RJ45)+2*GE(SFP)+2*10GE(SFP+)
Description

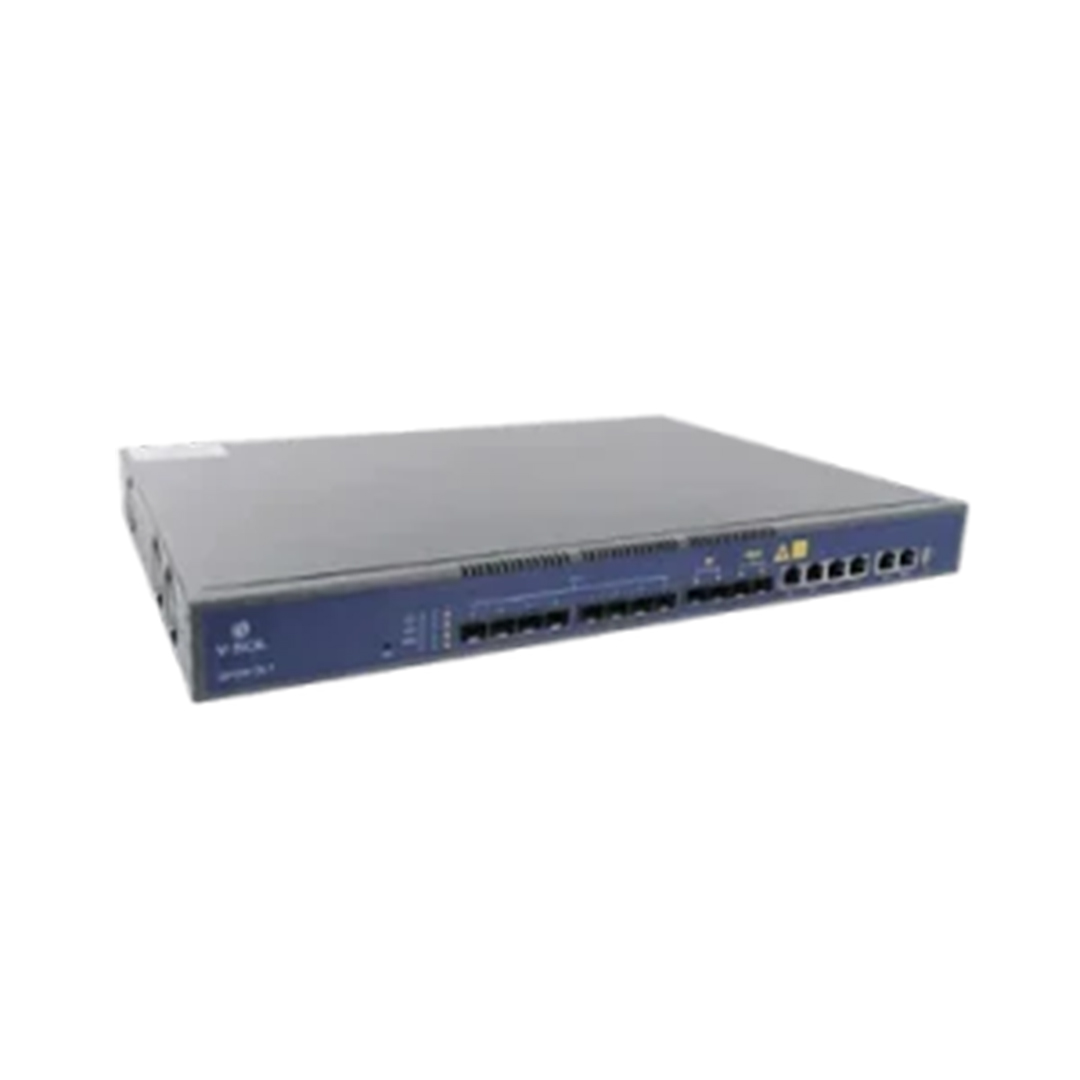

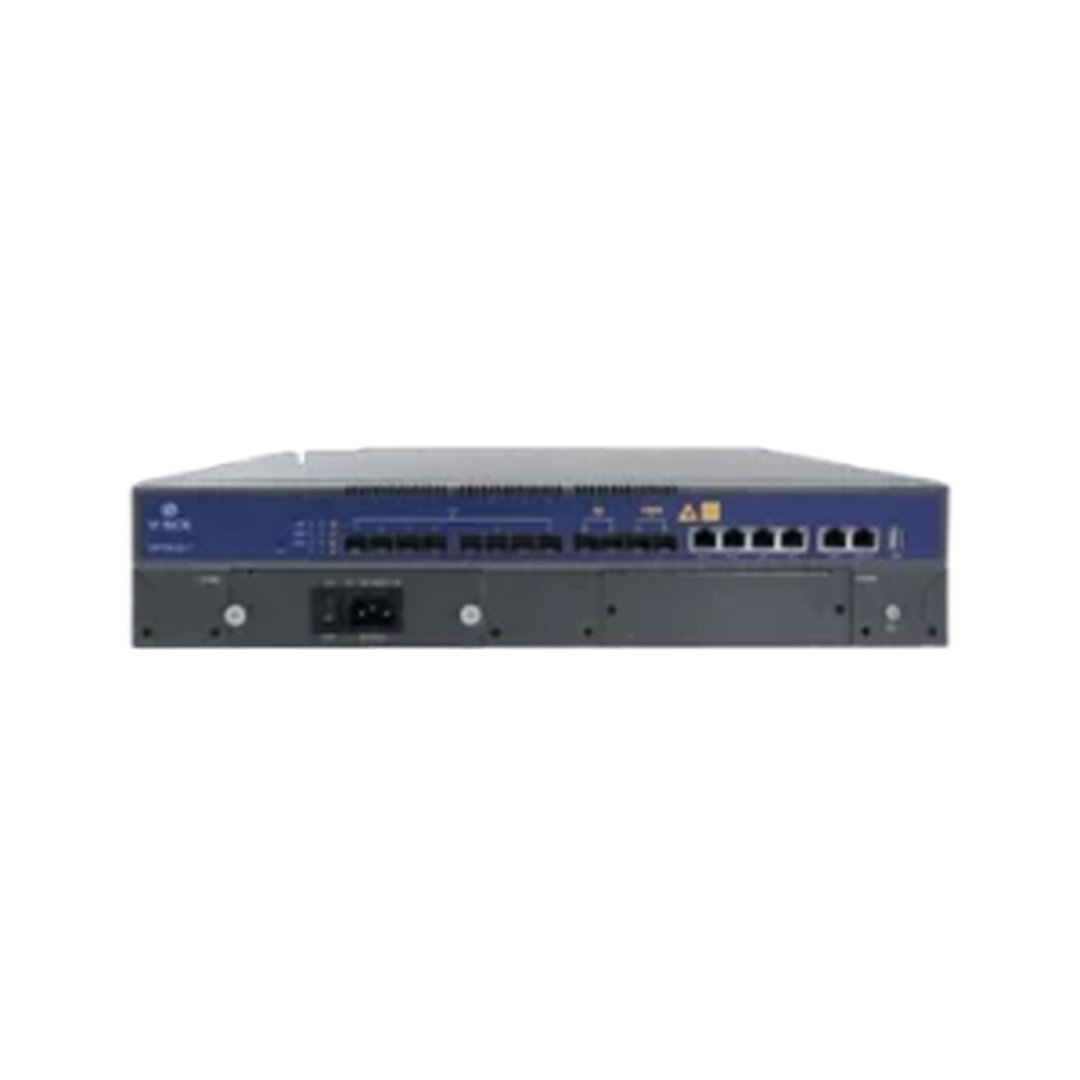

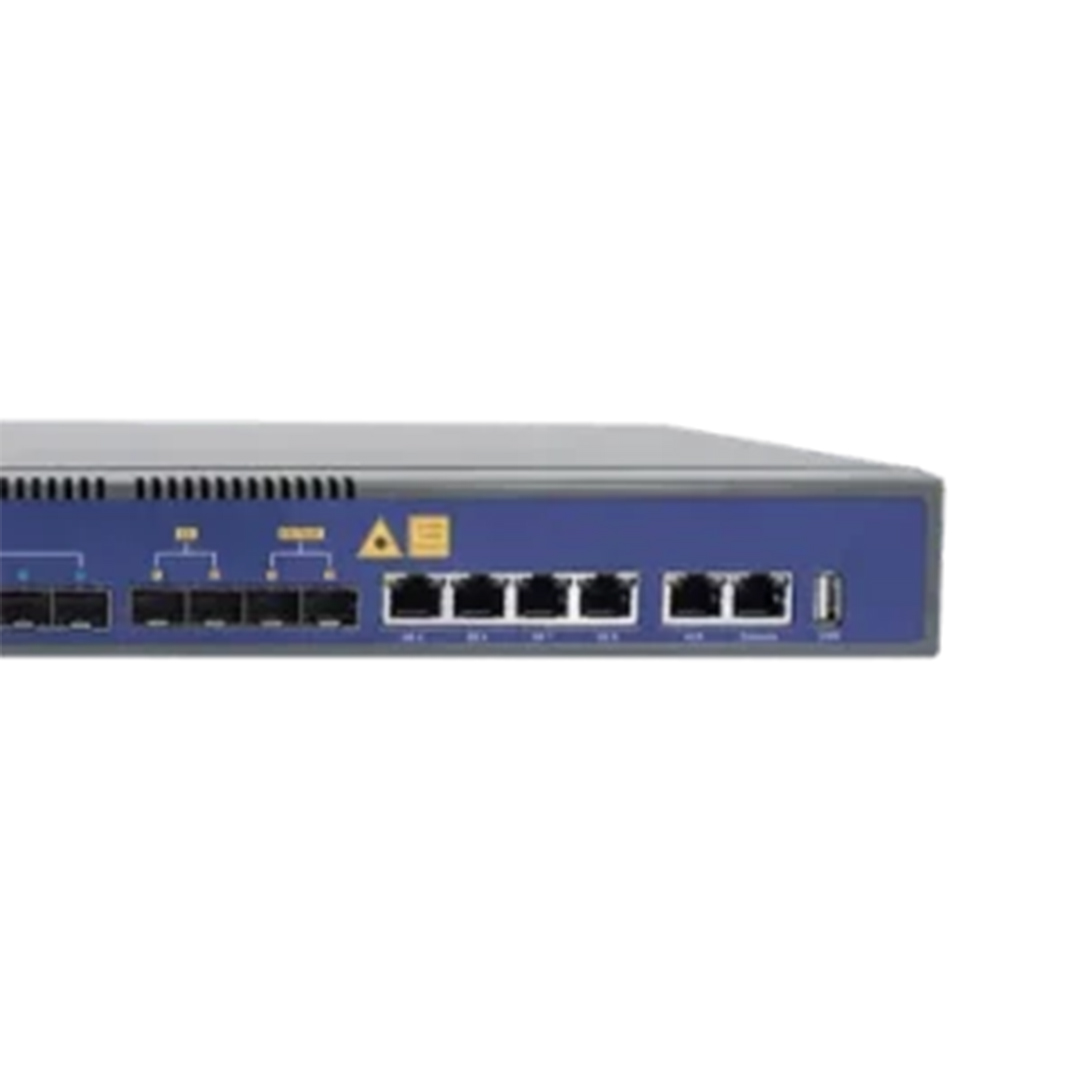

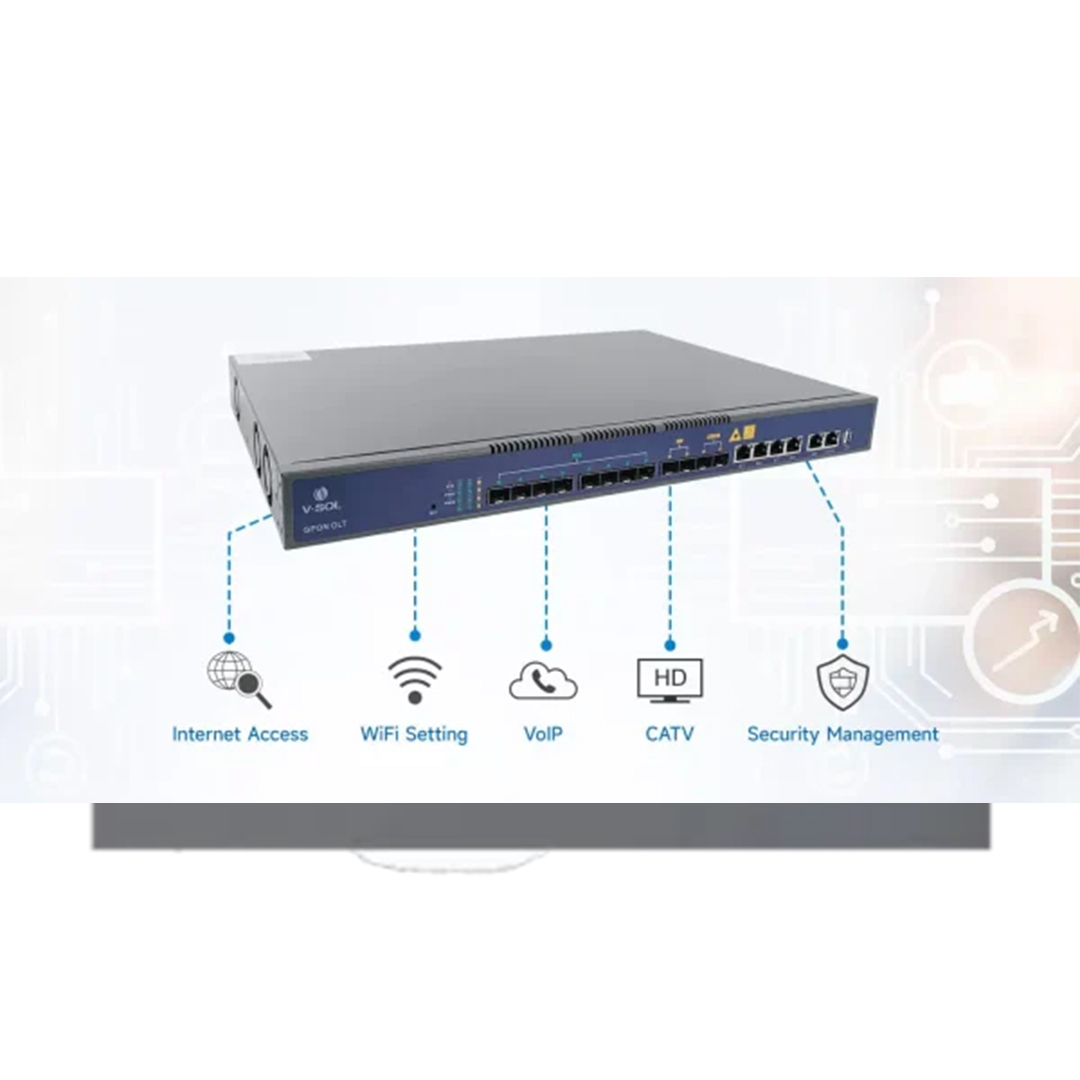

8 Port GPON OLT – V1600G1-B
The V1600G1-B is a high-performance Optical Network Terminal (OLT) designed for Gigabit Passive Optical Networks (GPON). With its 8 ports of GPON, 4 ports of Gigabit Ethernet (RJ45), 2 ports of Gigabit Ethernet (SFP), and 2 ports of 10Gigabit Ethernet (SFP+), this device offers fast and reliable data transmission.
Key Features:
-
8 x GPON ports for connecting to optical network units (ONUs)
-
4 x Gigabit Ethernet (RJ45) ports for legacy network connections
-
2 x Gigabit Ethernet (SFP) ports for flexible network uplinks
-
2 x 10Gigabit Ethernet (SFP+) ports for high-speed network uplinks
-
Compact design for easy deployment and maintenance
Specifications
| Item | V1600G0-B | V1600G1-B | V1600G2-B | |
| Dimension (L*W*H) | 442mm*220mm*43.6mm | 442mm*320mm*43.6mm | ||
| GE/10GE Uplink Port |
QTY | 4 | 8 | 8 |
| RJ45(GE) | 2 | 4 | 4 | |
| SFP(GE) | / | 2 | / | |
| SFP+(10GE) | 2 | 2 | 4 | |
| GPON Port | QTY | 4 | 8 | 16 |
| Physical Interface | SFP Slots, Max splitting ratio ≤ 1:128 | |||
| Management Ports | 1*FE out-band port, 1*CONSOLE port, 1*USB2.0, 1*Type-C USB(For console, G2-B) |
|||
| PON Port Specification (Class C+++ Module) |
Transmission Distance | 20KM | ||
| GPON port speed | Upstream 1.244Gbps, Downstream 2.488Gbps | |||
| Wavelength | TX 1490nm, RX 1310nm | |||
| Connector | SC / UPC | |||
| Fiber Type | 9/125μm SMF | |||
| Supported PON module level | Class B+, C, C+, C++, C+++ | |||
| Weight (Single AC Power) |
Net Weight | 2.95kg | 4.05kg | 4.80kg |
| Gross Weight | 4.15kg | 5.65kg | 6.40kg | |
| Power Supply | AC:100～240V, 47/63Hz or/and DC:-48V, Double Power Module Hot Backup |
|||
| Power Consumption | 35W | 45W | 85W | |
| Operating Environment |
Working Temperature | 0°C ~ +50°C | ||
| Storage Temperature | -40 ~ +85°C | |||
| Relative Humidity | 5 ~ 90% (non-conditioning) | |||
| Management Mode | EMS, WEB, SNMP, Telnet , CLI | |||
