The Connectivity Router – Your Best Companion When it Comes To SFP+ and SFP28 Management! 10 and 25 Gbps Ports in a Single Device To Make Your Life Easier.
Description

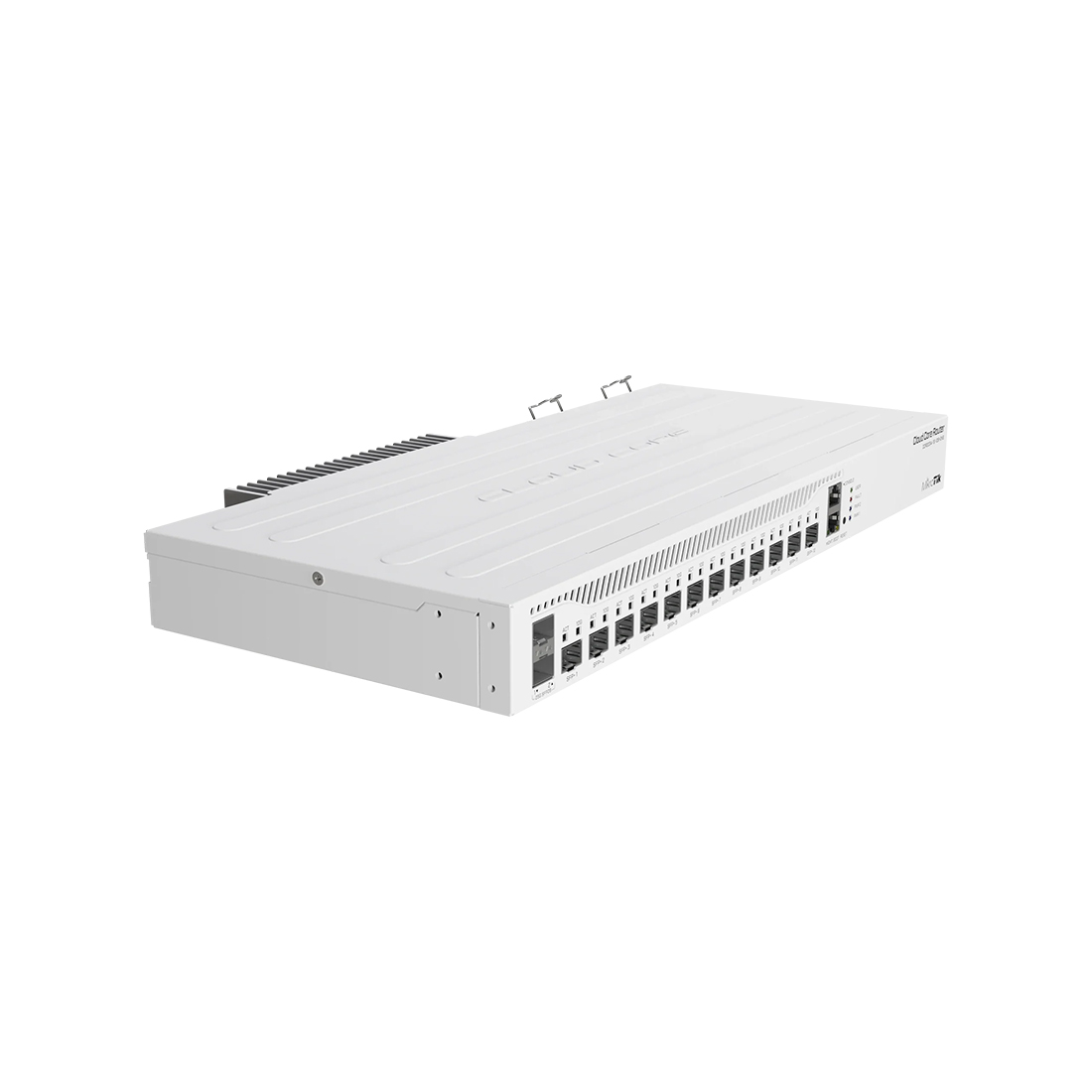

Take your networking to the next level with the CCR2004-1G-12S+2XS, a high-performance router designed for demanding applications. With a powerful 64-bit CPU and 1GB of RAM, this device delivers exceptional routing and switching capabilities.
Key Features:
-
12x SFP+ ports for flexible fiber connections
-
2x 10G SFP+ ports for high-bandwidth links
-
1x Gigabit Ethernet port for management and connectivity
-
Advanced routing and security features for large-scale networks
-
Compact 1U rackmount design for easy deployment
Ideal for data centers, service providers, and large enterprises, the CCR2004-1G-12S+2XS offers unparalleled performance, flexibility, and reliability for your network infrastructure
Specifications
Details:
| Product code | CCR2004-1G-12S+2XS |
| Architecture | ARM 64bit |
| CPU | AL32400 |
| CPU core count | 4 |
| CPU nominal frequency | 1700 MHz |
| Dimensions | 443 x 224 x 44 mm |
| RouterOS license | 6 |
| Operating System | RouterOS v7 |
| Size of RAM | 4 GB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 200’000 hours at 25C |
| Tested ambient temperature | -20°C to 60°C |
| IPsec hardware acceleration | Yes |
Powering
Details:
| Number of AC inputs | 2 |
| AC input range | 100-240 |
| Max power consumption | 49 W |
| Max power consumption without attachments | 32 W |
| Cooling type | 2 fans |
Ethernet
Details:
| 10/100/1000 Ethernet ports | 1 |
Fiber
Details:
| SFP+ ports | 12 |
| Number of 25G SFP28 ports | 2 |
Peripherals
Details:
| Serial console port | RJ45 |
