Product Description

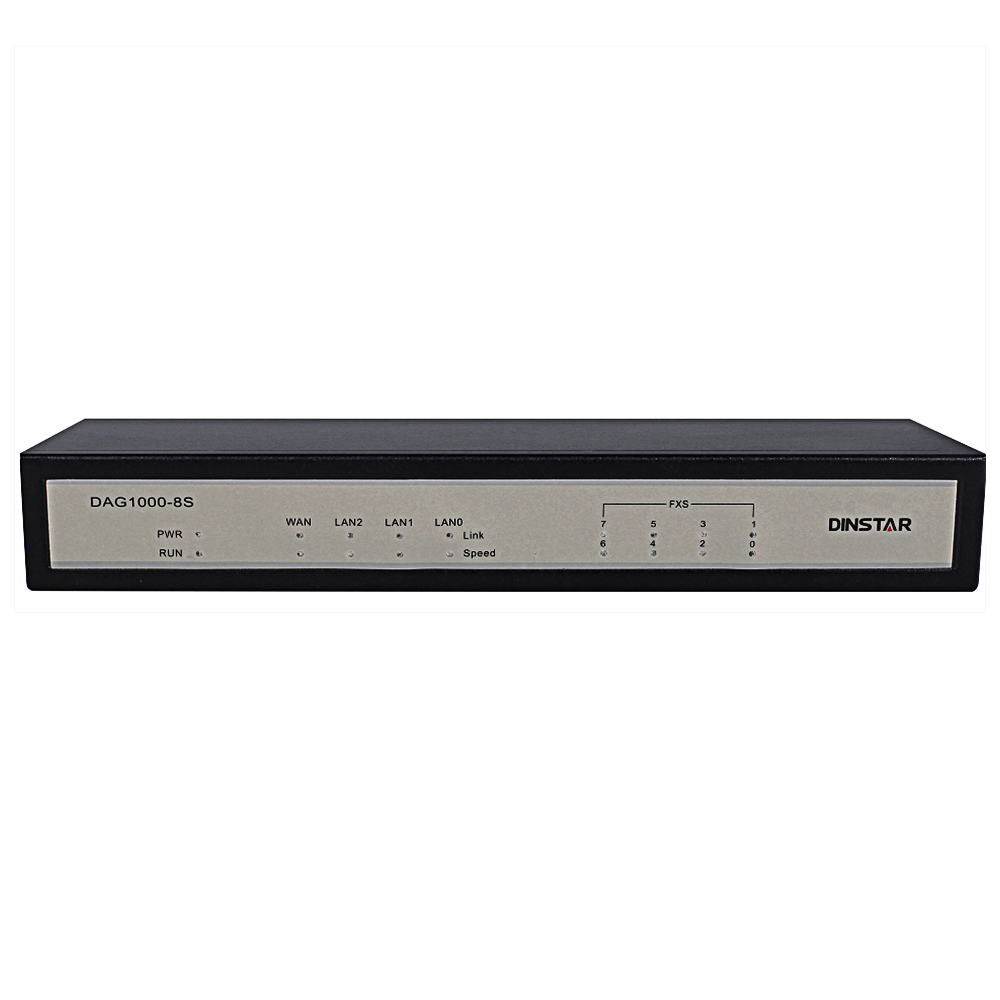

DAG1000-8S is an 8FXS gateway based on the SIP2.0 standard.Providing one WAN port and three LAN ports ,
DATA SHEET
| Height | 35 mm |
| Width | 150 mm |
| Depth | 240 mm |
| Weight | 1 kg |
| FXO ports: | NO |
| FXS ports: | 8 |
| GSM Ports: | NO |
| SIP VoIP Accounts: | Primary and secondary |
| WAN | 1 |
| LAN | 3 |
| VLAN | Yes |
| Codec G.711 | Yes |
| Codec G.729A | Yes |
| Codec Echo Cancellation | Yes |
| Codec DTMF | Signal/RFC2833/INBAND |
| Call forward/Caller ID | Yes |
| Call transfer | Yes |
| Call holding/waiting | Yes |
| 3 way conferencing | Yes |
| SIP info. | V2.0 (RFC 3261,3262,3264) |
| SNTP Client | Yes |
| Network tools in telnet server | Supported |
| Power Input | 220VAC/50Hz/0.5A |
| Power | 15 w |
| Ethernet Interface | 4 10/100BASE-TX |
| Graphical User Interface (GUI) | Yes |
| Support Asterisk/Elastix/Freeswitch | Yes |
| G.723.1 Codec | Yes |
| iLBC 13k/15k Codec | Yes |
| Transport Protocol | TCP/UDP/RTP/RTCP |
| TFTP | Yes |
| PPPOE | Yes |
| DNS | Yes |
| HTTP | Yes |
| SNMP | Yes |
| E1/T1 Port | No |
| Fax and Modem | T.38/ Pass-Through/Modem, baud rate:14.4kbps |
| QoS | Tos / DSCP |
| Dial Plan | Yes |
| IP Trunk | Yes |
| Voice Packet Capabilities | CNG, VAD, G.168, AJB |
| Calling Type | Voice/ T.38/Pass-through/Modem FAX mode, Up to 14.4kbps |
| Quick pick | Yes |
| Hotline | Yes |
| DND | Yes |
| Voice Mail | Yes |
| Standard | Bellcore Type 1 &2, ETSI, BT, NTT and DTMF based CID |
