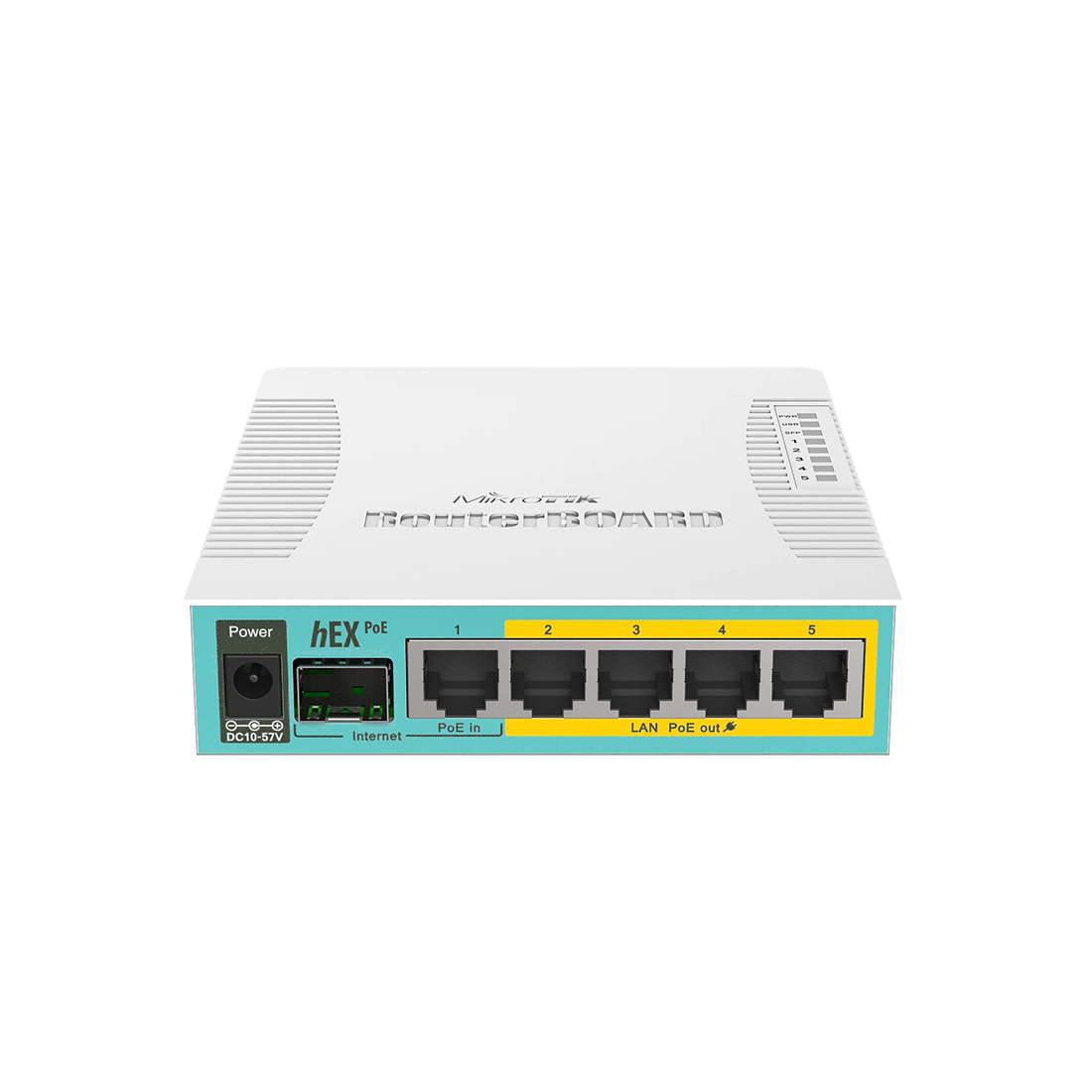

hEX PoE 5x Gigabit Ethernet With PoE Output For Four Ports, SFP, USB, 800MHz CPU, 128MB RAM, RouterOS L4
Description
hEX PoE: 5-Port Gigabit Ethernet Router
-
5 Gigabit Ethernet ports with PoE output
-
USB 2.0 port and SFP port for optical fiber connectivity
-
Ports 2-5 can power PoE devices with same voltage as input
-
Affordable, compact, and easy to use
-
Powerful 800MHz CPU for advanced RouterOS configurations
-
Supports passive PoE input and 802.3af/at PoE output
-
Can power mode B compatible devices with 48-57V input
-
Shielded Ethernet ports with max current of 1A per port
A reliable and versatile wired router for locations without wireless needs, offering advanced features and PoE capabilities.
Specifications
| Details | |
|---|---|
| Product code | RB960PGS |
| Architecture | MIPSBE |
| CPU | QCA9557 |
| CPU core count | 1 |
| CPU nominal frequency | 800 MHz |
| Switch chip model | QCA8337 |
| RouterOS license | 4 |
| Operating System | RouterOS |
| Size of RAM | 128 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 100’000 hours at 25C |
| Tested ambient temperature | -40°C to 60°C |
| Suggested price | $89.00 |
Powering
| Details | |
|---|---|
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 12-57 V |
| Max power consumption | 54 W |
| Max power consumption without attachments | 6 W |
| Cooling type | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 12-57 V |
PoE-out
| Details | |
|---|---|
| PoE-out ports | Ether2-Ether5 |
| PoE out | 802.3af/at |
| Max out per port output (input 18-30 V) | 1 A |
| Max out per port output (input 30-57 V) | 450 mA |
| Max total out (A) | 2 A |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 5 |
Fiber
| Details | |
|---|---|
| SFP ports | 1 |
Peripherals
| Details | |
|---|---|
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
Other
| Details | |
|---|---|
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Beeper | Yes |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
| IP | IP20 |
