L23UGSR-5HaxD2HaxD

Build your own custom outdoor Wi-Fi 6 access point or CPE! This modular wireless router comes with handy MMCX connectors, allowing you to create versatile omnidirectional access points and powerful point-to-point links

Description

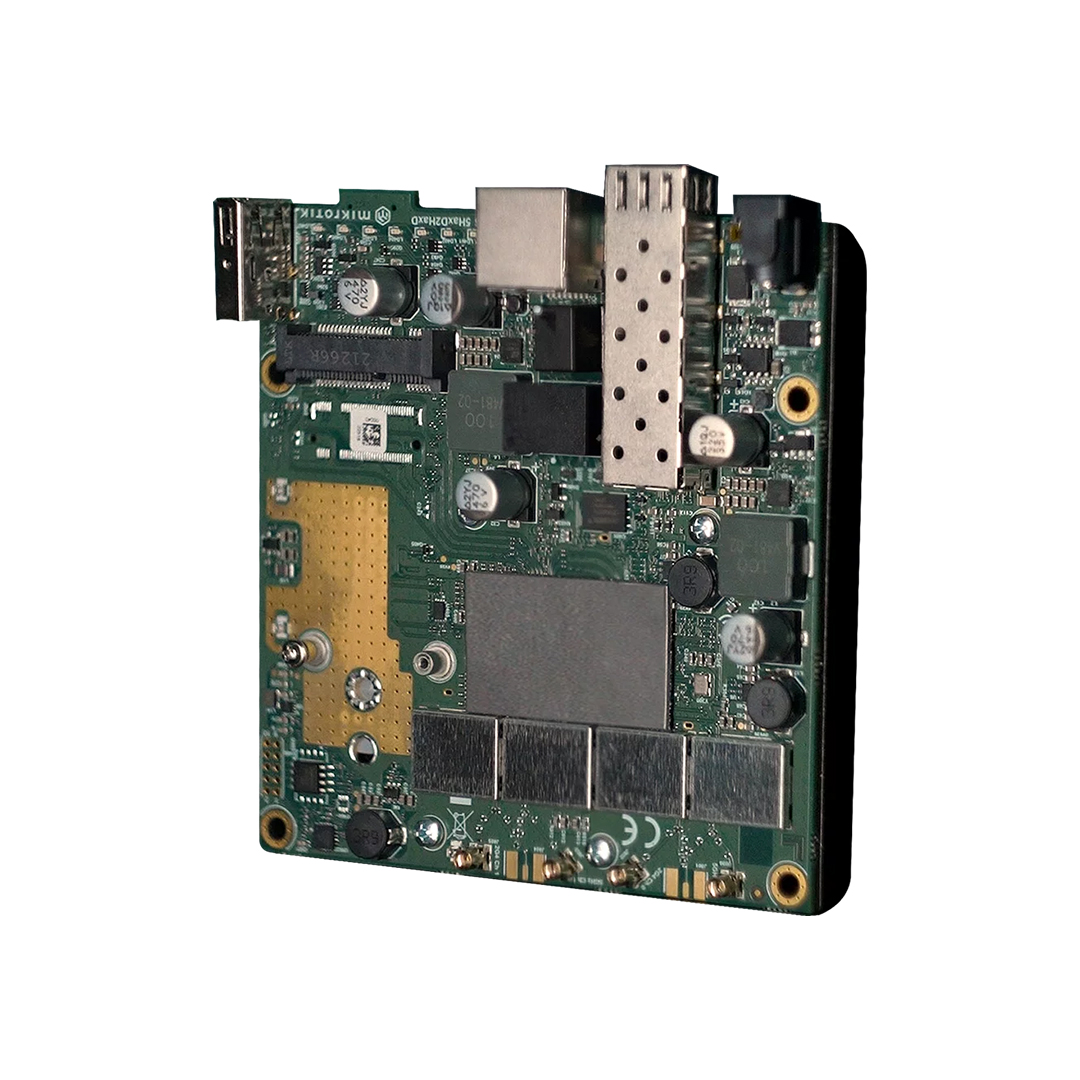

L23UGSR Board

Build custom outdoor Wi-Fi 6 access points or CPEs with:

Dual-band Wi-Fi 6 for high-speed wireless connectivity
Modular design for flexible configuration
Qualcomm Maple CPU based on ARM architecture
USB port for extra storage or needs
Gigabit Ethernet with PoE-in
2.5 Gigabit SFP for fiber connectivity
Free miniPCIe slot for customization (e.g., LTE modem or LoRa gateway)
NanoSIM slot for mobile internet backup
Powerful dual-band, dual-chain Wi-Fi 6 radio for increased speed and stability
Four MMCX connectors for versatile antenna options
Beeper for alarms or creative outputs

Ideal for building custom outdoor wireless solutions, including access points, CPEs, and more.

Specifications

Details
Product code	L23UGSR-5HaxD2HaxD
Architecture	ARM
CPU	IPQ-5010
CPU core count	2
CPU nominal frequency	800 MHz
RouterOS license	4
Operating System	RouterOS v7
Size of RAM	256 MB
Storage size	128 MB
Storage type	NAND
MTBF	Approximately 100’000 hours at 25C
Tested ambient temperature	-40°C to 70°C
Suggested price	$99.00

Powering

Details
Number of DC inputs	2 (PoE-IN, DC jack)
DC jack input Voltage	12-28 V
Max power consumption	25 W
Max power consumption without attachments	12 W
Cooling type	Passive
PoE in	Passive PoE
PoE in input Voltage	18-28 V

Wireless specifications

Details
Wireless 2.4 GHz Max data rate	574 Mbit/s
Wireless 2.4 GHz number of chains	2
Wireless 2.4 GHz standards	802.11b/g/n/ax
Wireless 2.4 GHz chip model	IPQ-5010
Wireless 2.4 GHz generation	Wi-Fi 6
Wireless 5 GHz Max data rate	2400 Mbit/s
Wireless 5 GHz number of chains	2
Wireless 5 GHz standards	802.11a/n/ac/ax
Wireless 5 GHz chip model	QCN-6102
Wireless 5 GHz generation	Wi-Fi 6
