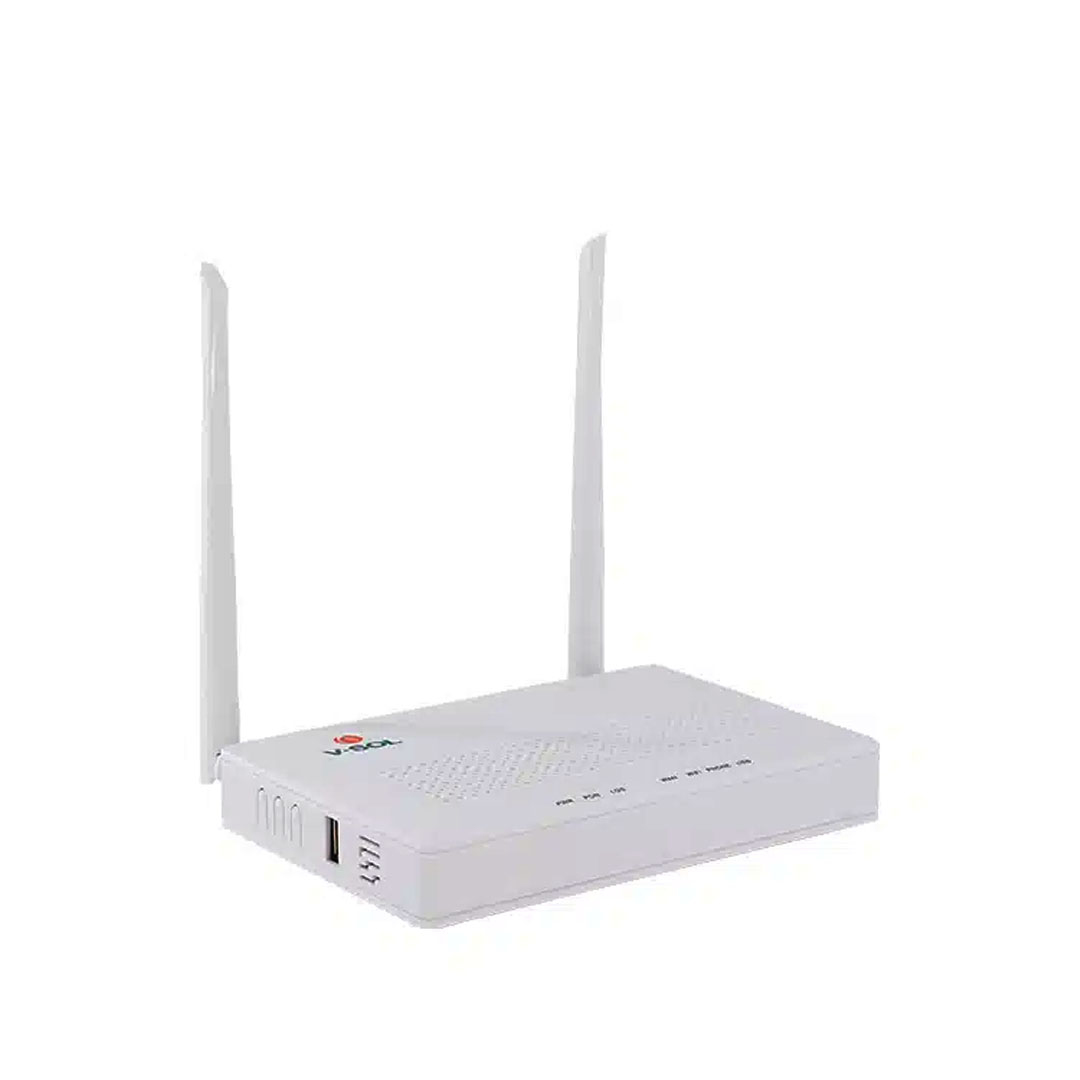

Model: V2804N , Spec: 1*GE+3FE+WiFi 4
Description
The V2804N is a versatile and feature-rich Optical Network Unit (ONU) device that offers a comprehensive and high-speed internet connectivity solution. With its advanced features and robust design, it is ideal for homes, small businesses, and enterprises.
Key Features:
-
1 Gigabit Ethernet (GE) port for high-speed internet access
-
3 Fast Ethernet (FE) ports for connecting multiple devices
-
WiFi 4 (802.11n) support for wireless connectivity
-
USB port for connecting external devices or charging
-
Compact and wall-mountable design for easy installation
Technical Specifications:
-
Model: V2804N
-
Interface: 1 GE + 3 FE + WiFi 4 + USB
-
WiFi Standards: 802.11n
-
Power Supply: DC 12V, 1A
-
Dimensions: 180mm x 120mm x 30mm
-
Operating Temperature: 0°C to 40°C
-
Humidity: 5% to 90% non-condensing
Specifications
| ○ Hardware Parameter | |
| Dimension | 205mm×140mm×37m(L×W×H) |
| Net weight | 0.34Kg |
| Operating condition | Operating temp: 0 ~ +50°C
Operating humidity: 5 ~ 90% (non-condensed) |
| Storing condition | Storing temp: -30 ~ +75°C
Storing humidity: 5 ~ 90% (non-condensed) |
| Power adapter | DC 12V, 1/1.5A, external AC-DC power adaptor |
| Power supply | ≤10W |
| Interfaces | 1GE+3FE+WiFi 4+USB 2.0 |
| Indicators | PWR, PON, LOS, WAN, ETH1 ~ ETH4, WIFI, USB, WPS |
| ○ Interface Parameter | |
| PON interface | l 1XPON port(EPON PX20+ and GPON Class B+)
l SC single mode, SC/UPC connector l TX optical power: 0～+4dBm l RX sensitivity: -27dBm l Overload optical power: -3dBm(EPON) or -8dBm (GPON) l Transmission distance: 20KM l Wavelength: TX 1310nm, RX1490nm |
| WIFI interface | l Compliant with IEEE802.11b/g/n
l Rate up to 300Mbps, 2T2R, 5dBi external antenna l Support: multiple SSID l Support 13 Channels |
| LAN interface | 1*GE+ 3*FE Auto-negotiation RJ45 ports |
| USB interface | USB 2.0 for Shared Storage/Printer |
| ○ Function Data | |
| XPON mode | Dual mode , Can access EPON/GPON OLTs (Mainstream Brand OLT) |
| Uplink mode | Routing mode |
| Firewall | DDOS, Filtering Based on ACL/MAC/URL |
| Layer2 | IEEE 802.1D&802.1ad bridge, 802.1p Cos, 802.1Q VLAN |
| Layer3 | IPv4/IPv6, DHCP Client/Server, PPPoE, NAT , DMZ ,DDNS |
| Multicast | IGMP v1/v2/v3 , IGMP snooping |
| Security | Flow & Storm control, Loop Detection |
| O&M | l WEB/TELNET/OAM/OMCI/TR069
l Support private OAM/OMCI protocol l Unified network management of VSOL OLT |
