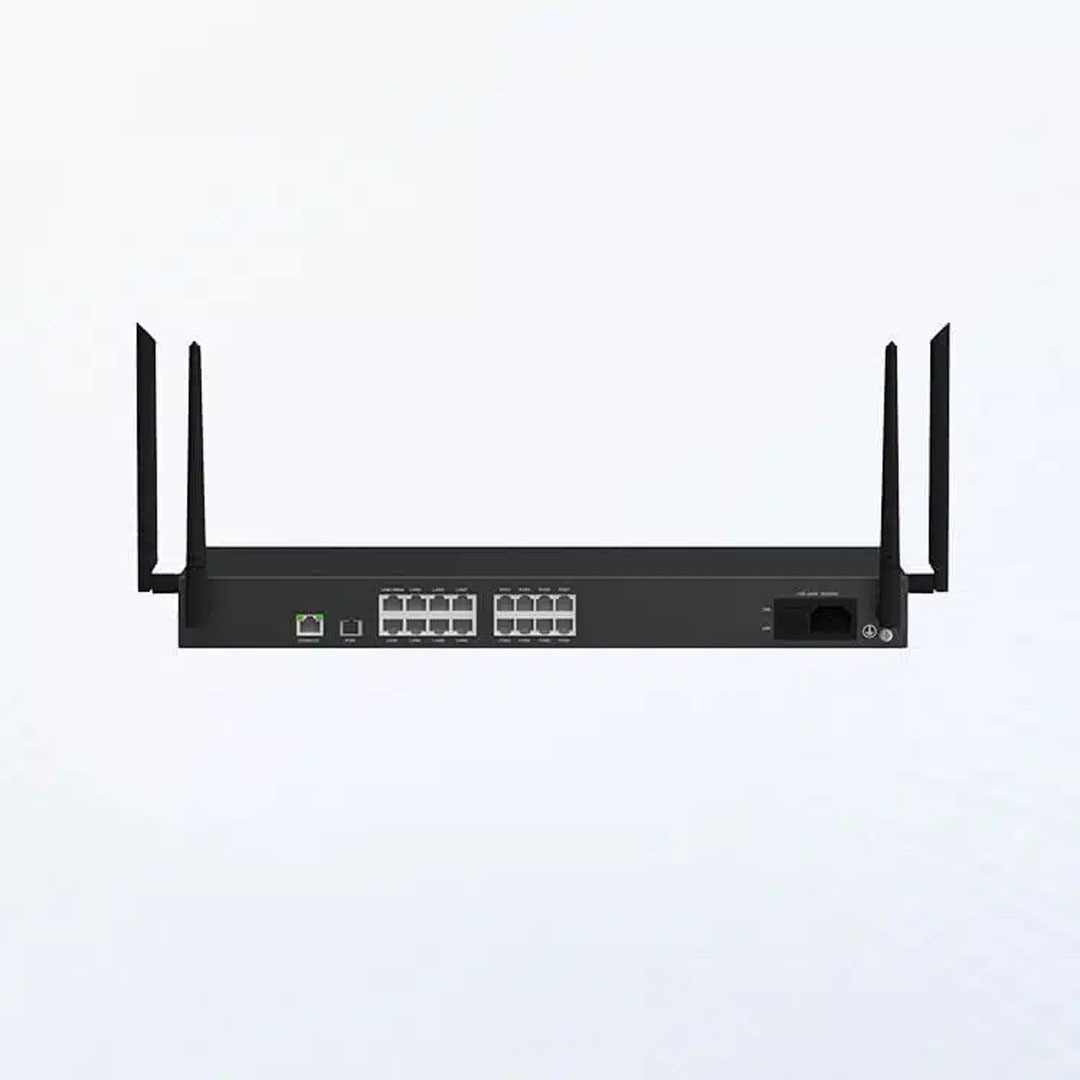

Model: ICT3310D-8G8S2NAC ,Spec: 1XPON+8GE+8POTS ICT
Description
The ICT3310D series is a cutting-edge broadband access device designed to meet the diverse needs of users seeking multiple business integration. The ICT3310D-8G8S2NAC model leverages mature and stable PON technology, offering high-cost performance and combining it with advanced 802.11ac wireless technology (2T2R), LAN switch technology, and high-quality VoIP technology. This results in a highly reliable, easily manageable, and QoS-guaranteed solution.
Technical Specifications
-
Power Adapter Input: 220V AC, 50Hz
-
System Power Supply: Refer to the device nameplate for specifications
-
Ambient Temperature: -10°C to +55°C
-
Ambient Humidity: 5% to 95% (non-condensing)
-
Storage Temperature: -40°C to +70°C
-
Storage Humidity: 5% to 95% (non-condensing)
Technical Parameter
| Parameter | Hardware Parameter |
| XPON | |
| Chipset | RTL9607CP |
| PON | SC single-mode/single-fiber, Downstream rate 2.5Gbps, Upstream rate 1.25Gbps |
| Wavelength | Tx 1310nm, Rx 1490nm |
| Sensitivity | <-27dBm(CLASS B+) |
| Optical Type | SC/PC |
| Interface Type | 8 *10/100/1000MbpsAuto adaptive Ethernet interfaces, Full/Half Duplex, RJ45 connector, 8POTS, RJ11 connector |
| WiFi Interface | Compliant with IEEE802.11b/g/n/ac 2.4GHz Operating frequency: 2.400-2.483GHz 5.0GHz Operating frequency: 5.150-5.825GHz Support MIMO, 2T2R,5dBi external antenna Support: multiple SSID TX power: 11n–20dBm/11ac–23dBm |
| Indicators | 26, For POWER / SYS / CONSOLE / USB / PON / Lan / Phone/WLAN |
| Parameter Name | Software Parameter |
| XPON | |
| LAN | Support Port rate limiting |
| WAN | Support config first LAN interface as wan interface |
| WLAN | Integrated 802.11b/g/n/ac Support max 128 users Authentication : WEP/WAP-PSK(TKIP)/WAP2-PSK(AES) Modulation type: DSSS、CCK and OFDM Encoding scheme: BPSK、QPSK、16QAM and 64QAM |
| VLAN | Support VLAN tag mode Support VLAN transparent mode Support VLAN trunk mode Support VLAN translation mode |
| Multicast | Support IGMPv1/v2/v3 Support IGMP Proxy and MLD Proxy Support IGMP Snooping and MLD Snooping |
| QoS | Support 4 queues Support SP and WRR Support 802.1P Support DSCP |
| L3 | Support IPv4、IPv6 and IPv4/IPv6 dual stack Support DHCP/PPPOE/Statics Support Static route Support NAT Support Bridge, Route ,Route and Bridge mixed mode Support DMZ Support DNS Support ALG Support UPnP Support Virtual Server |
| DHCP | Support DHCP Server Support DHCP Relay |
| VoIP | Support SIP protocol Support Voice coding: ITU-T G.711A/G.711U/G.722/G.729, auto-negotiate with call agent Support Echo cancellation exceeding ITU-T G.165/G.168-2002, up to 128ms tail length Support high/low speed fax/Modem, bypass fax, and T38 fax Support InBand / RFC2833/INFO DTMF, MD5 authentication, call forward,call waiting, hot-line call, and all kinds of additional service. Three-party conferencing |
| Performance | Data loss: <1*10E-12 Call loss: <0.01% |
| Security | Support Firewall Support Mac filter Support ACL Support URL filter |
| Management | Support OMCI(ITU-T G.984.x) Support CTC OAM 2.0 and 2.1 |
| Support WEB Support TR069 Support TELNET Support CLI |
|
| Application | Support l2tp andIpsec VPN Support EOIP Support VxLan Support Web Push |
