Description
ICT3310DPS-8G2NAC: Compact and Powerful Networking Solution
Meet the ICT3310DPS-8G2NAC, a versatile and compact networking device that packs a punch. With 8 Gigabit Ethernet ports, WiFi 5 capabilities, and optional POE support, this device is perfect for small to medium-sized networks. Weighing only 320g, it’s ideal for space-constrained environments.
Key Features:
- 1 x XPON port
- 8 x Gigabit Ethernet ports
- WiFi 5 capabilities
- Optional POE support
- Compact design (320g)
Perfect for small networks, IoT devices, and more!

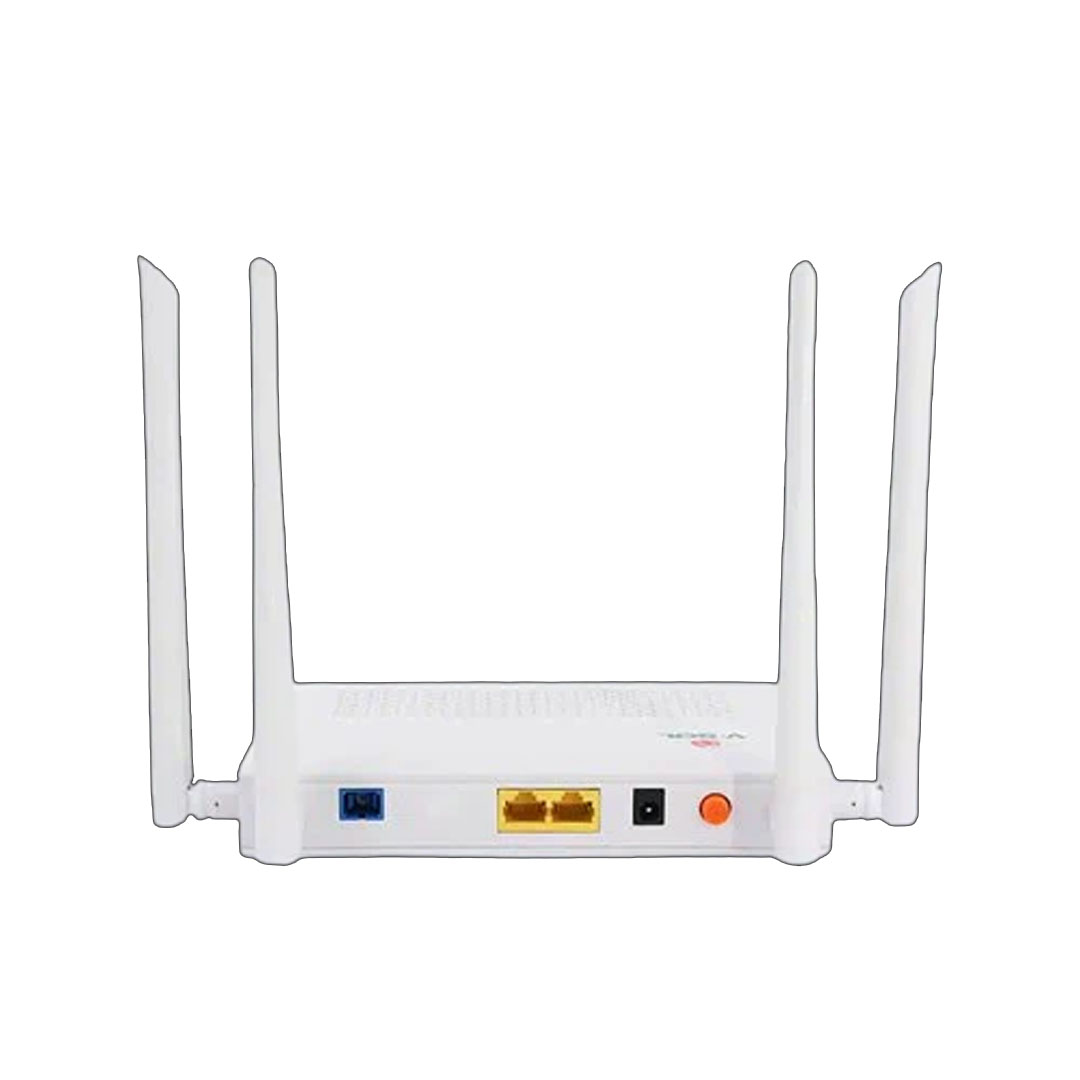

Product Appearance
○ Hardware Parameter |
|
|
Dimension |
196×160×32mm(L×W×H) |
|
Net weight |
0.32Kg |
|
Operating condition |
Working Temp: -10 ~ +55°C Working Humidity: 5 ~ 95%(non-condensed) |
|
Storing condition |
Storing temp: -40 ~ +70°C Storing humidity: 5 ~ 95% (non-condensed) |
|
Power adapter |
ICT3310DPS-8G2NAC: DC 48V, 2.5A (POE） ICT3310D-8G2NAC: DC 12V，1A ICT3310D-4G2NAC: DC12V，1A |
|
Power supply |
ICT3310DPS-8G2NAC: ≤130W ICT3310D-8G2NAC: ≤12W ICT3310D-4G2NAC: ≤12W |
|
Interface |
1×xPON+8×GE+WiFi5+POE(optional) |
|
Indicators |
4, For POWER / WiFi / PON /LOS |
|
|
|
○ Interface parameter |
|
|
PON interface |
l 1 XPON port(EPON PX20+ and GPON Class B+) l SC Single Mode，Receiving sensitivity: ≤ –28dBm l TX optical power: 0 ~ +4dBm l Transmission distance: 20KM l RX 2.488Gbps, TX 1.2488Gbps |
|
Wavelength |
Tx-1310nm, Rx-1490nm |
|
Optical interface |
SC/UPC connector |
|
User interface |
l 8*10/100/1000 Mbps auto adaptive Ethernet interface , RJ45 connectors(4×GE Option）. l Support IEEE802.3at standards (POE+ PSE) |
|
WLAN interface |
Compliant with IEEE802.11b/g/n/ac,2×2 MIMO 2.4GHz Operating frequency: 2.400-2.483GHz 5.0GHz Operating frequency: 5.150-5.825GHz |
○ Function Data |
|
|
Management |
l Support OMCI(ITU-T G.984.x) l Support CTC OAM 2.0 and 2.1 l Support TR069/Web/Telnet/CLI |
|
Application |
l Support L2TP & IPSec VPN l Support EoIP l Support VxLan l Support Web Push |
|
LAN |
Support Port rate limiting |
|
WAN |
Support config first LAN interface as WAN port |
|
VLAN |
l Support VLAN tag/VLAN transparent/VLAN trunk/VLAN translation l Support VLAN based WAN and VLAN based LAN |
|
Multicast |
l Support IGMPv1/v2/v3 l Support IGMP Proxy and MLD Proxy l Support IGMP Snooping and MLD Snooping |
|
QoS |
l Support 4 queues l Support SP and WRR l Support 802.1P l Support DSCP |
|
Wireless |
l Support Wireless AP mode l Support 802.11 b/g/n/ac l Support Multiple SSID l Authentication : WEP/WAP-PSK(TKIP)/WAP2-PSK(AES) l Modulation type: DSSS, CCK and OFDM l Encoding scheme: BPSK, QPSK, 16QAM and 64QAM l Support EasyMesh |
|
L3 |
l Support IPv4、IPv6 and IPv4/IPv6 dual stack l Support DHCP/PPPOE/Statics l Support Static route,NAT l Support Bridge, Route ,Route and Bridge mixed mode l Support DMZ, DNS, ALG,UPnP l Support Virtual Server |
|
DHCP |
Support DHCP Server & DHCP Relay |
|
Security |
Support Filter based on MAC/ACL/URL |
