Your compact, affordable PoE powerhouse with 8x Gigabit PoE-out ports and 2x 10 Gigabit SFP+ ports
Description

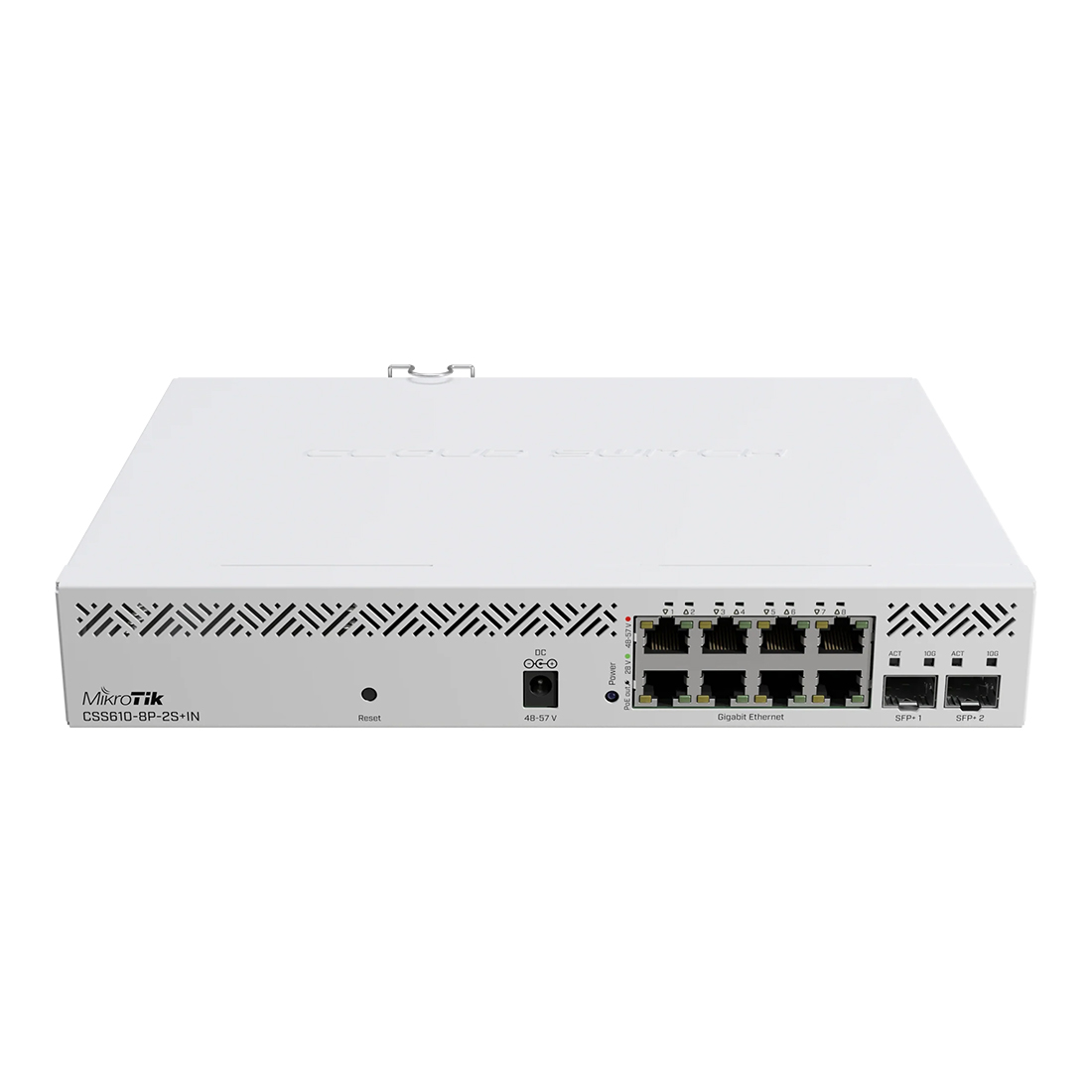

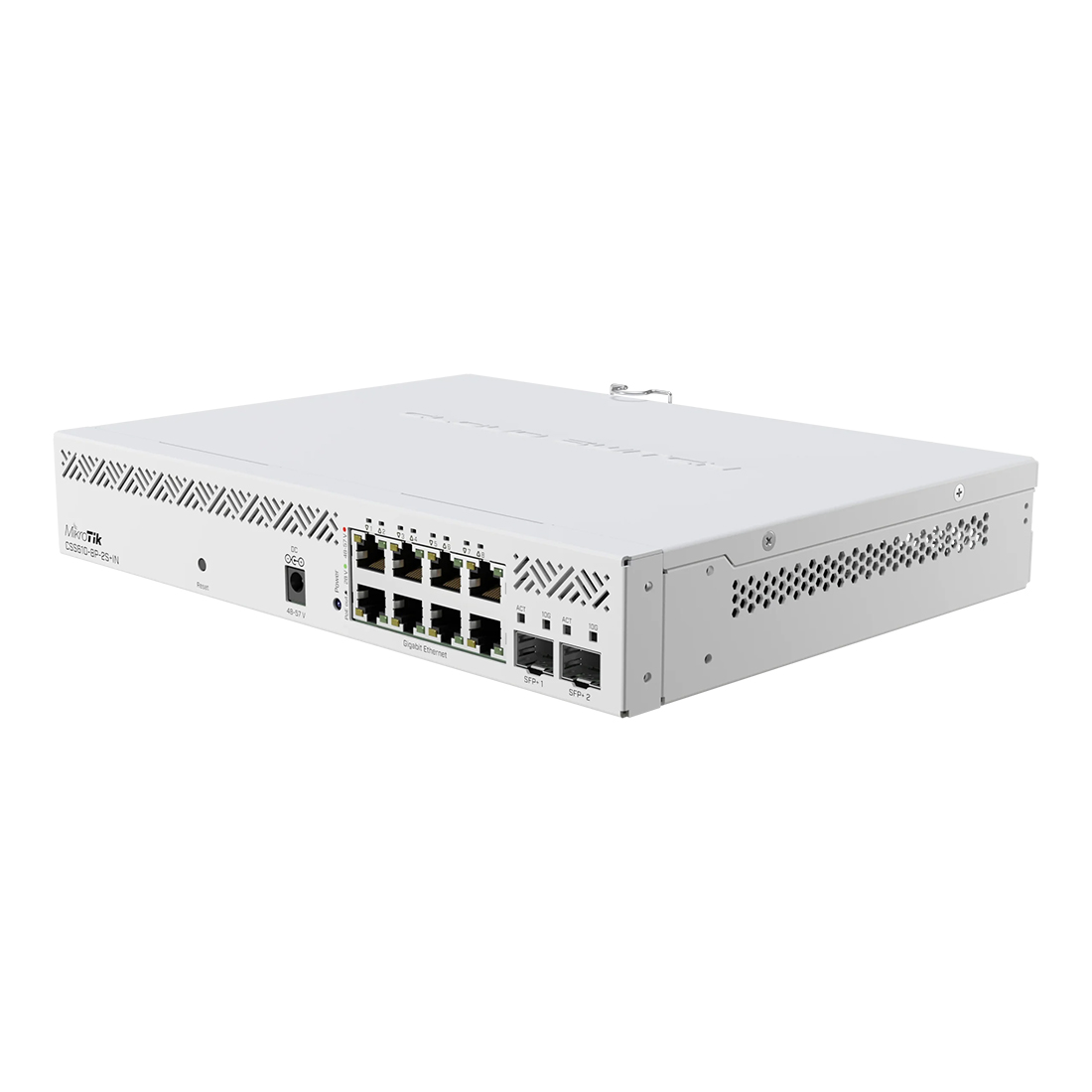

CSS610-8P-2S+IN: Versatile Switch for Diverse Setups
Unleash Unbelievable Scalability with CSS610-8P-2S+IN
The CSS610-8P-2S+IN switch is a game-changer for various setups, from home networks and small offices to hotels, call centers, and beyond. Its unique combination of size, features, and price offers unparalleled scalability potential.
Key Features:
-
2x SFP+ ports for 10 Gigabit fiber connectivity
-
8x Gigabit Ethernet ports with 802.3af/at and passive PoE-out
-
Compact form-factor for easy shipping and handling
-
Lightweight SwOS for effortless configuration
-
Web browser configuration for ease of use
-
Managed switch functionality with advanced features:
-
Port-to-port forwarding
-
Broadcast storm control
-
MAC filtering
-
VLAN configuration
-
Traffic mirroring
-
Bandwidth limitation
-
MAC and IP header field adjustment
-
PoE-out and SFP+ Combination for Ultimate Flexibility
The CSS610-8P-2S+IN offers a total PoE-out budget of 140 W, making it perfect for demanding scenarios like hotels, conference halls, or call centers. Use PoE-out ports to connect IP phones, network cameras, and wireless access points, while SFP+ ports connect your primary server to the ISP.
Benefits:
-
Unbelievable scalability potential
-
Versatile setup options
-
Easy configuration and management
-
Cost-effective solution
-
Perfect for diverse setups, from home networks to large enterprises
Specifications
| Details | |
|---|---|
| Product code | CSS610-8P-2S+IN |
| Switch chip model | 88E6193X |
| Dimensions | 272x208x44mm |
| Operating System | SwitchOS Lite |
| Storage size | 64 KB |
| Storage type | FLASH |
| MTBF | Approximately 200’000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| Suggested price | $229.00 |
Powering
| Details | |
|---|---|
| Number of AC inputs | 1 |
| AC input range | 100-240 |
| Number of DC inputs | 1 (DC jack) |
| DC jack input Voltage | 48-57 V |
| Frequency (Hz) | 47-63 |
| Max power consumption | 162 W |
| Max power consumption without attachments | 12 W |
| Cooling type | Passive |
PoE-out
| Details | |
|---|---|
| PoE-out ports | Ether1-Ether8 |
| PoE out | 802.3af/at |
| Max out per port output (input 18-30 V) | 1000 mA |
| Max out per port output (input 30-57 V) | 625 mA |
| Total output power | 140 |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 8 |
| Number of 1G Ethernet ports with PoE-out | 8 |
Fiber
| Details | |
|---|---|
| SFP+ ports | 2 |
Other
| Details | |
|---|---|
| CPU temperature monitor | Yes |
| Voltage Monitor | Yes |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
| IP | 20 |
