Most Economical Fiber Fusion Splicer
Small, light, and handheld.
Touch screen display
Stable performance and low fusion splicer.
They are used for FTTx/FTTH/Security/ Monitoring projects.
- Item NO.: X-500
- Product Origin: CHINA
- Color: Standard
- Shipping Port: Shanghai/Shenzhen
- Lead Time: 3 Working Days
PRODUCT DETAILS
Consult and place an order now, you can get a pair of Shinho original electrodes. We are sincerely looking forward to building a business relationship with you!

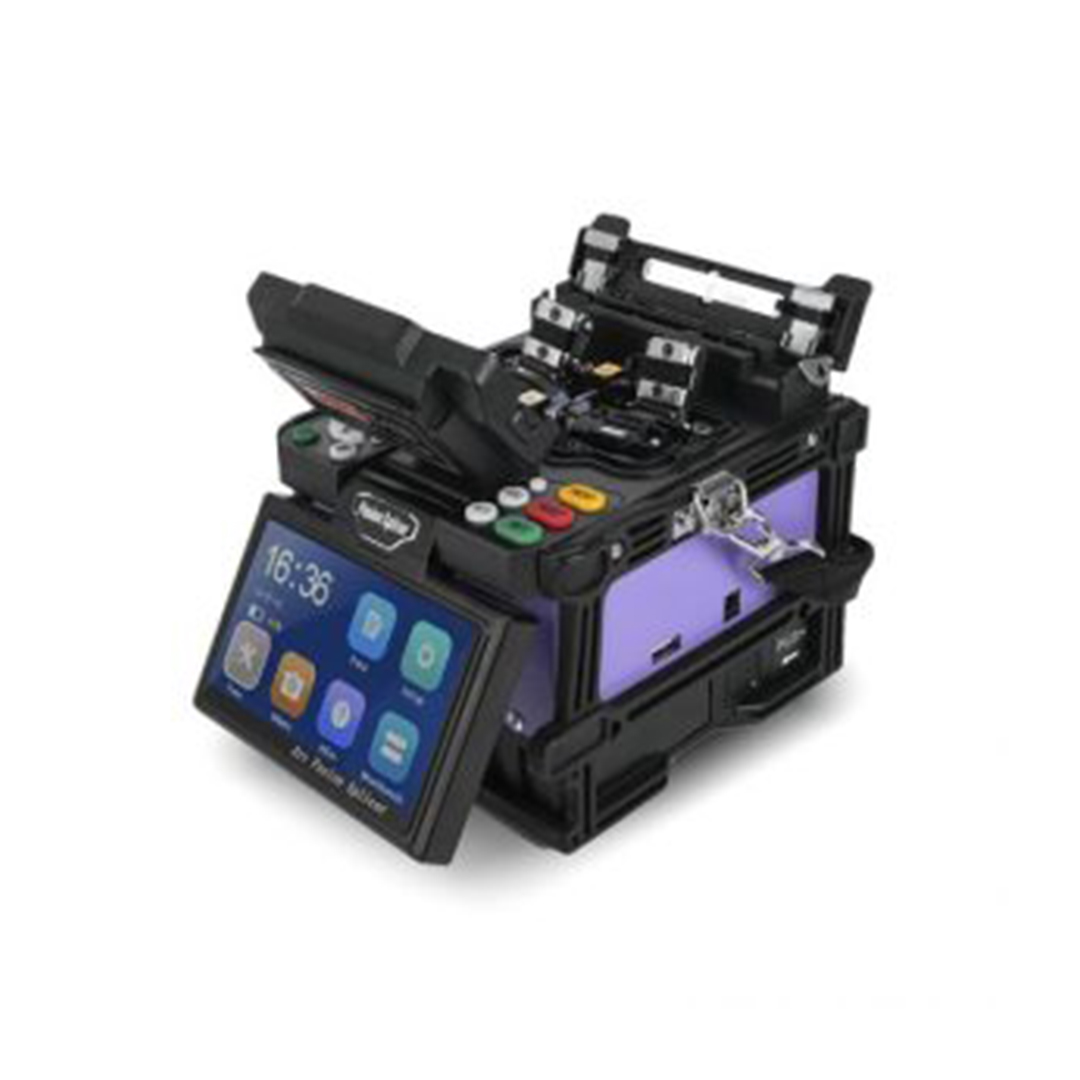

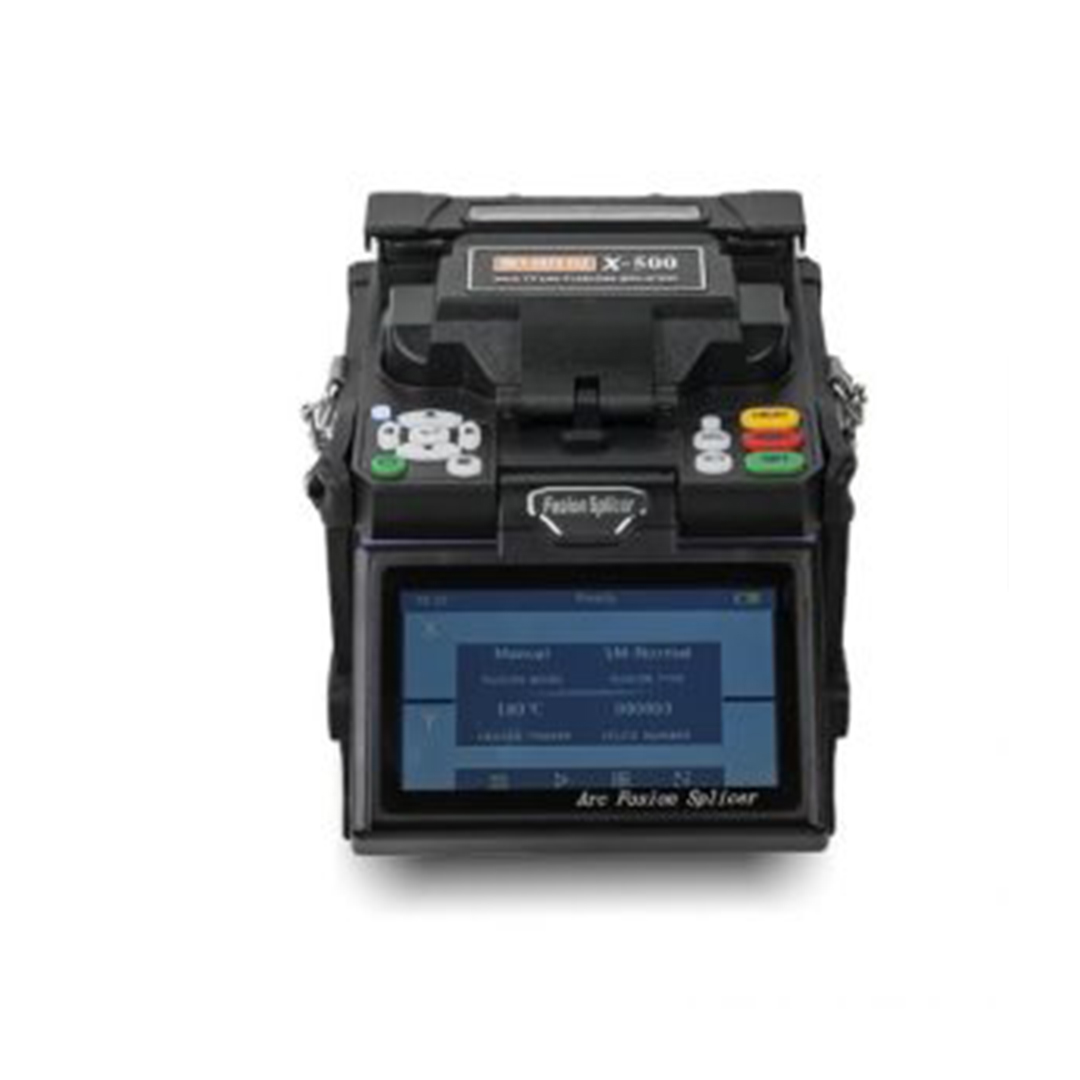

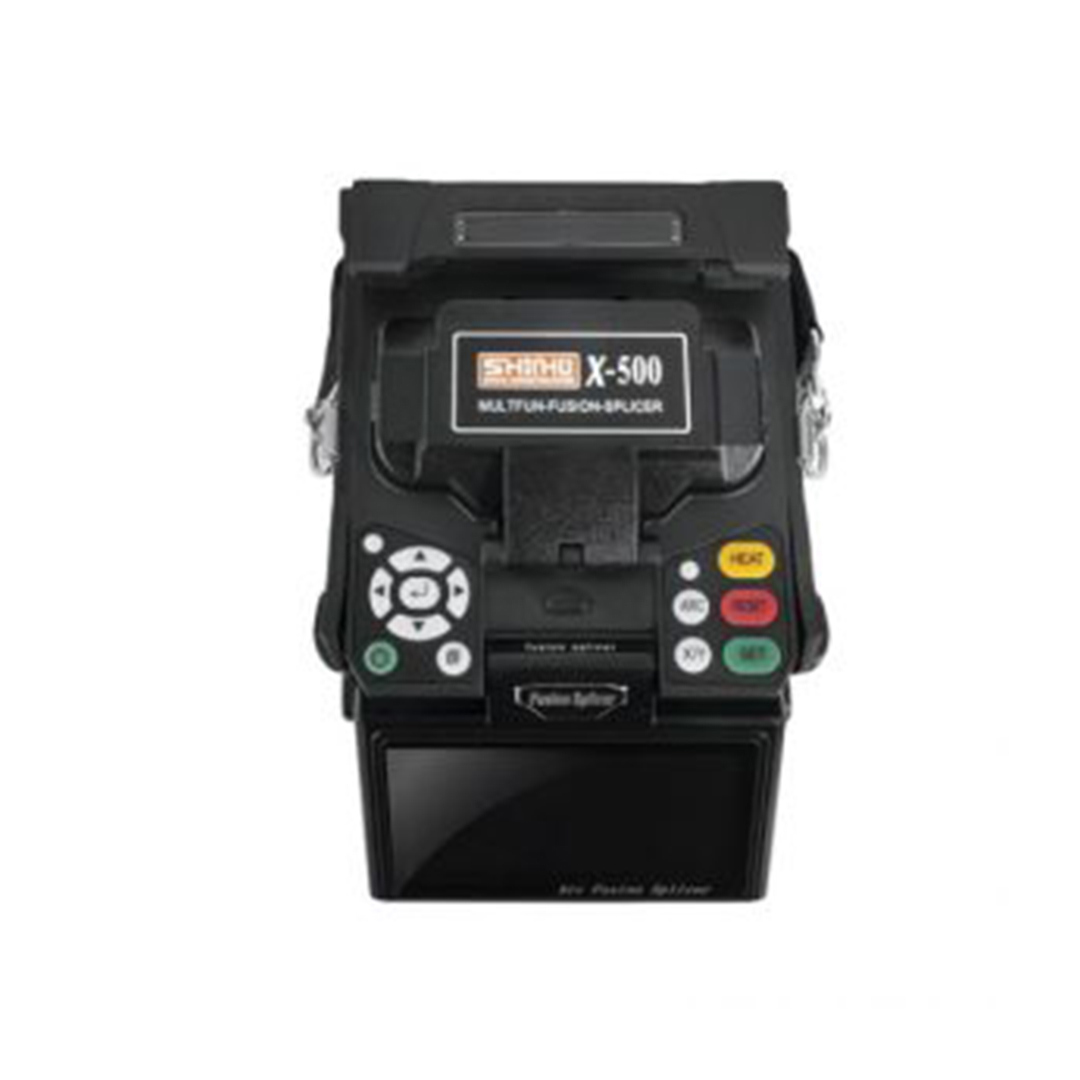

Handheld FTTx Fiber Fusion Splicer X-500
X-500 Fiber fusion splicer is a 4-motor fusion splicer with the latest fiber alignment technology, GUI menu design, and upgraded CPU. It has very stable performance and low fusion loss (average loss lower than 0.03dB), it is a very economical fusion splicer and suitable for FTTx/ FTTH/ Security/ Monitoring, etc. projects.

Features
- 1s boot up, 7s splicing, 26s heating
- Stable performance, average fusion loss 0.03dB
- Automatic ARC calibration, easy for maintaining
- Inductive automatic heater, industrial quad-core CPU
- Big capacity battery, more than 250 cycles splice & heat
Specifications
| Applicable fiber | SM(ITU-T G.652),MM(ITU-T G.651),DS(ITU-T G.653),NZDS(ITU-T G.655), G.657 etc. |
| Diameter of cladding | 80 -150μm |
| Diameter of coating | 160-3000μm |
| Typical splice loss | SM: 0.02dB, MM: 0.01dB, DS: 0.04dB, NZDS: 0.04dB |
| Return loss | > 60dB |
| Fibe cleaved length | 5-16mm ( coating diameter < 250um), 16mm (coating diameter:250-1000um) |
| Splicing program | 40 groups |
| Operate mode | Automatic/Manual |
| Auto-heating | Available |
| Typical splicing time | 7 seconds |
| Typical heating time | 26 seconds |
| Fiber magnification | 320X (X or Y view), 160X (X and Y view) |

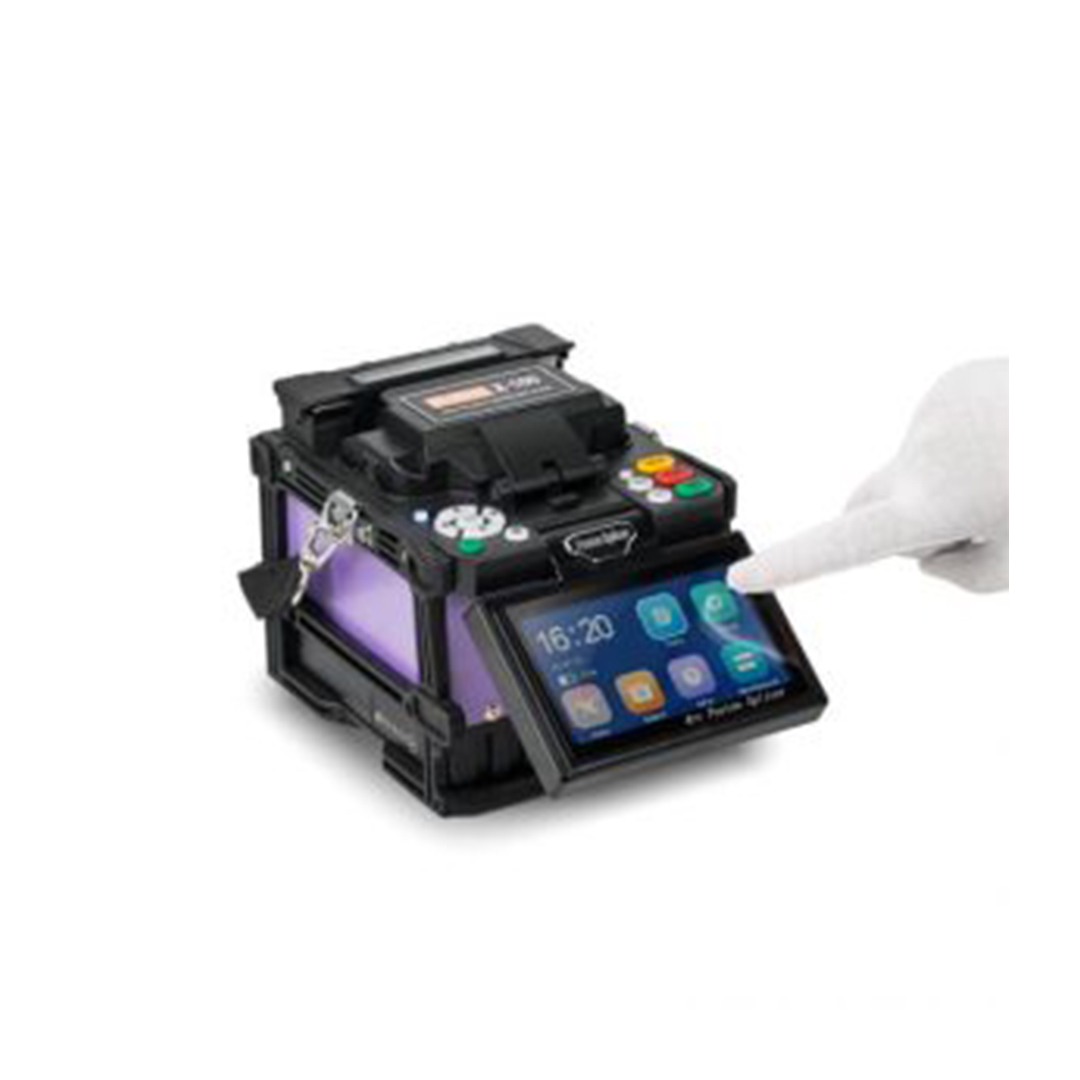

| Display screen | 4.3-inch color LCD monitor, Touch screen |
| Records Storage | 8000 results |
| Loss evaluation | Available |
| Tension test | 1.8-2.2N |
| Interface | GUI menu interface, easy for operate |
| Battery | 5200mAh Li-battery, typical 250 cycles of splicing and heating |
| Power supply | Adapter, input: AC 100-240V(50/50HZ), output: 11-13.5V |
| Electrodes life | More than 4000 ARC discharges, can be replaced conveniently |
| Terminal | USB2.0 port, for software upgrading and records exporting |
| Operating conditions | Altitude: 0-5000m, Humidity: 0-95%, Temperature: -10℃~+50℃, Wind speed: Max 15m/s |
| Dimension | 149mm(L) * 120mm(W) * 127mm(H) |
| Weight | 1.90kg (including battery) |
Standard Accessories
| NO. | ITEM |

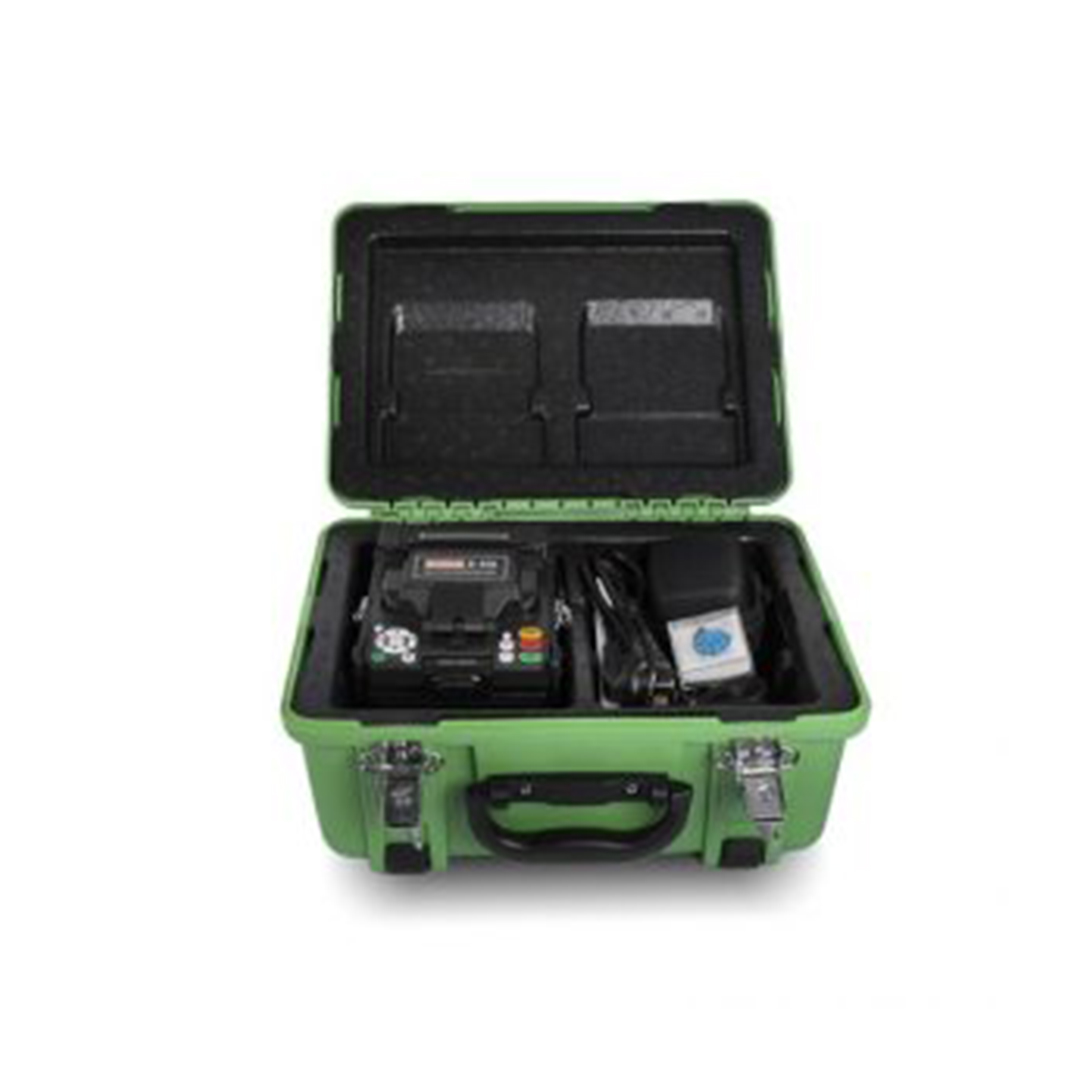

| 1 | Carrying box |
| 2 | Fiber cleaver |
| 3 | Fiber stripper |
| 4 | Drop cable stripper |
| 5 | Power cord |
| 6 | Adapter |
| 7 | Cooling tray |
| 8 | User manual (USB) |
| 9 | Spare electrodes |
| 10 | Cleaning tool kit |
| 11 | Strap |
