Classic model with stable performance
Small, light and handheld.
Stable performance and low fusion splicer.
Used for FTTx/FTTH/Security/ Monitoring projects.
- Item NO.: X-97
- Product Origin: CHINA
- Color: Standard
- Shipping Port: Shanghai/Shenzhen
- Lead Time: 3 Working Days

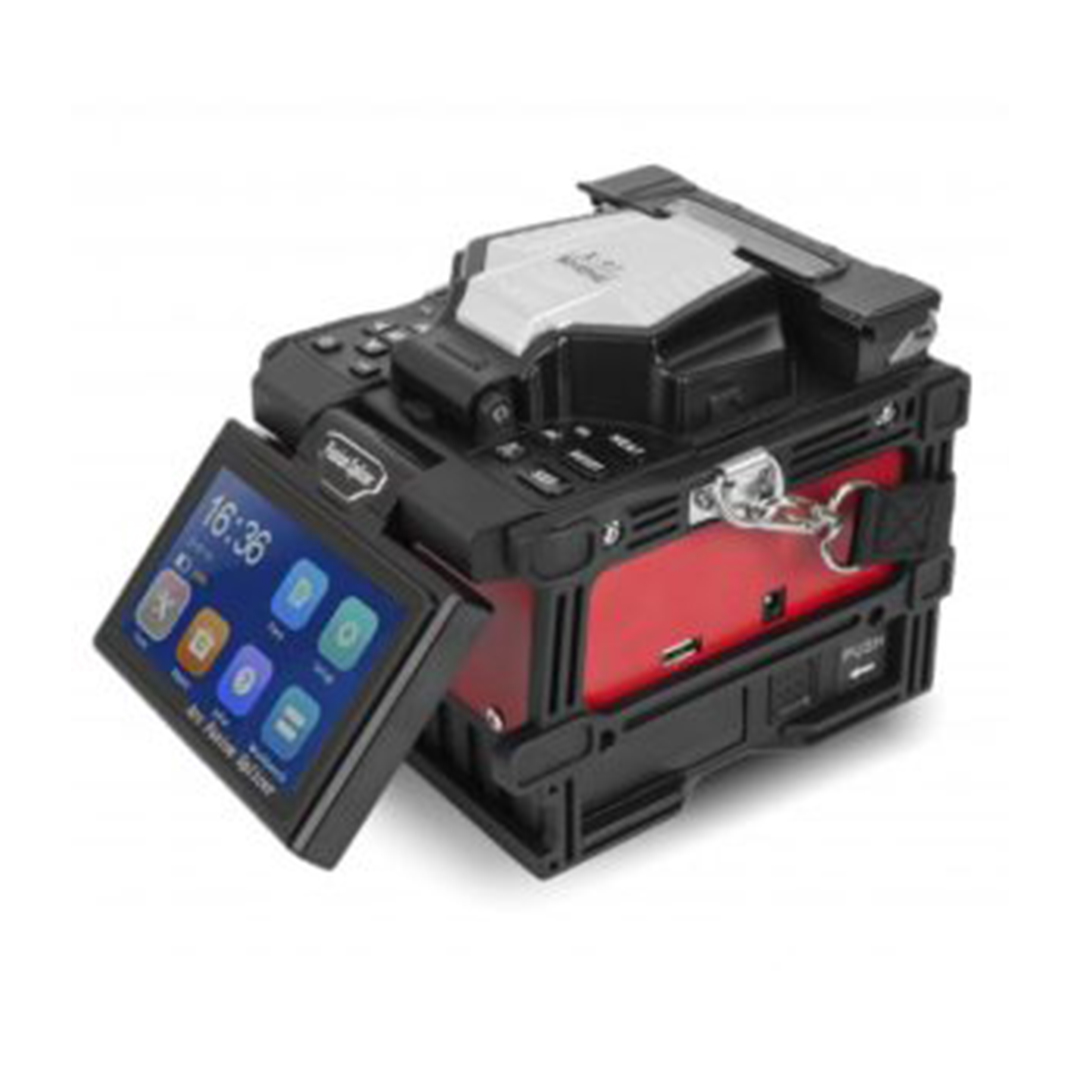

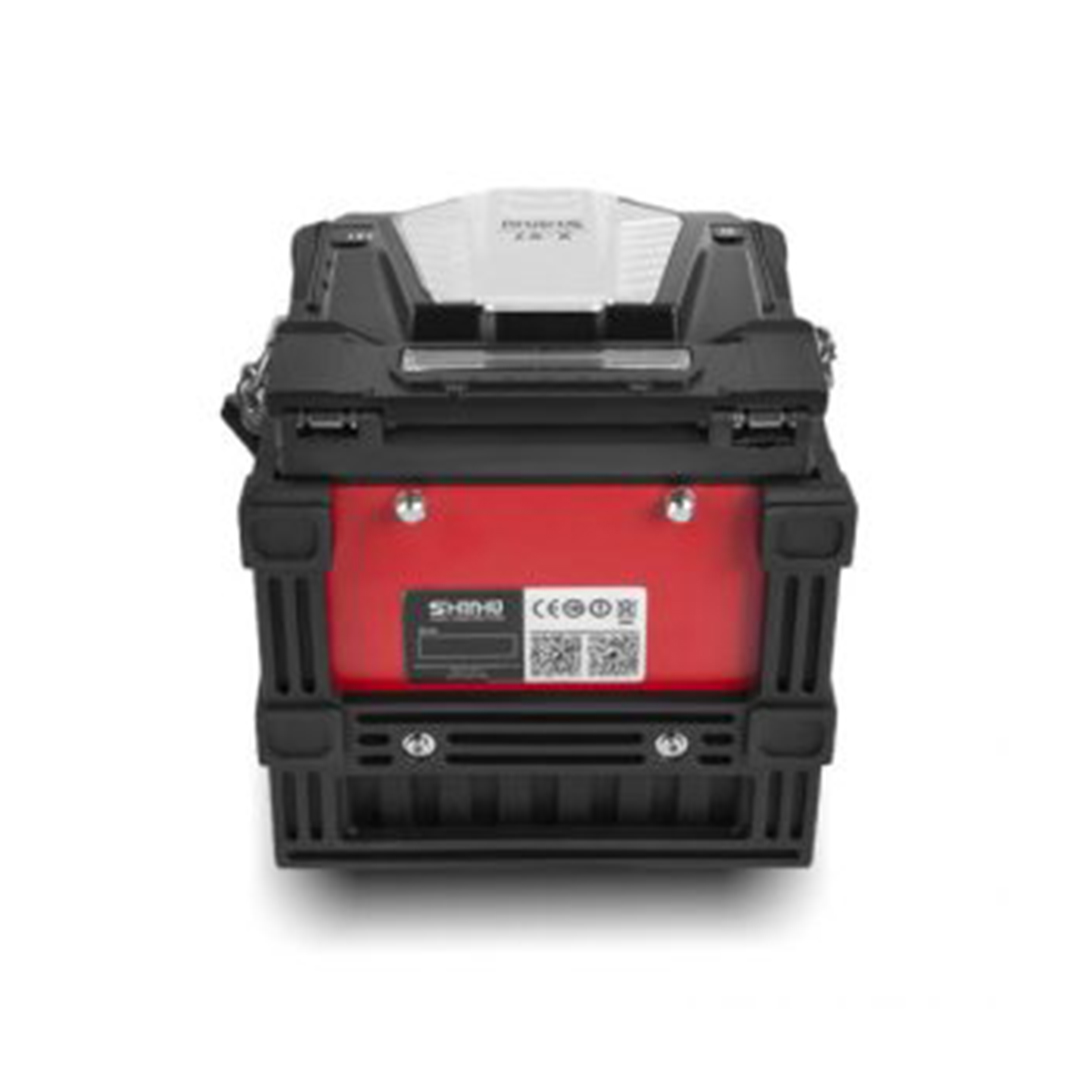

Handheld FTTx Fiber Fusion Splicer X-97
X-97 Fiber fusion splicer is a 4-motor fusion splicer with fiber core alignment technology, GUI menu design, and upgraded CPU. It has very stable performance and low fusion loss (average loss lower than 0.03dB), it is a very economical fusion splicer and suitable for FTTx/ FTTH/ Security/ Monitoring etc. projects.
Features
- 1s boot up, 7s splicing, 26s heating
- Stable performance, average fusion loss 0.03dB

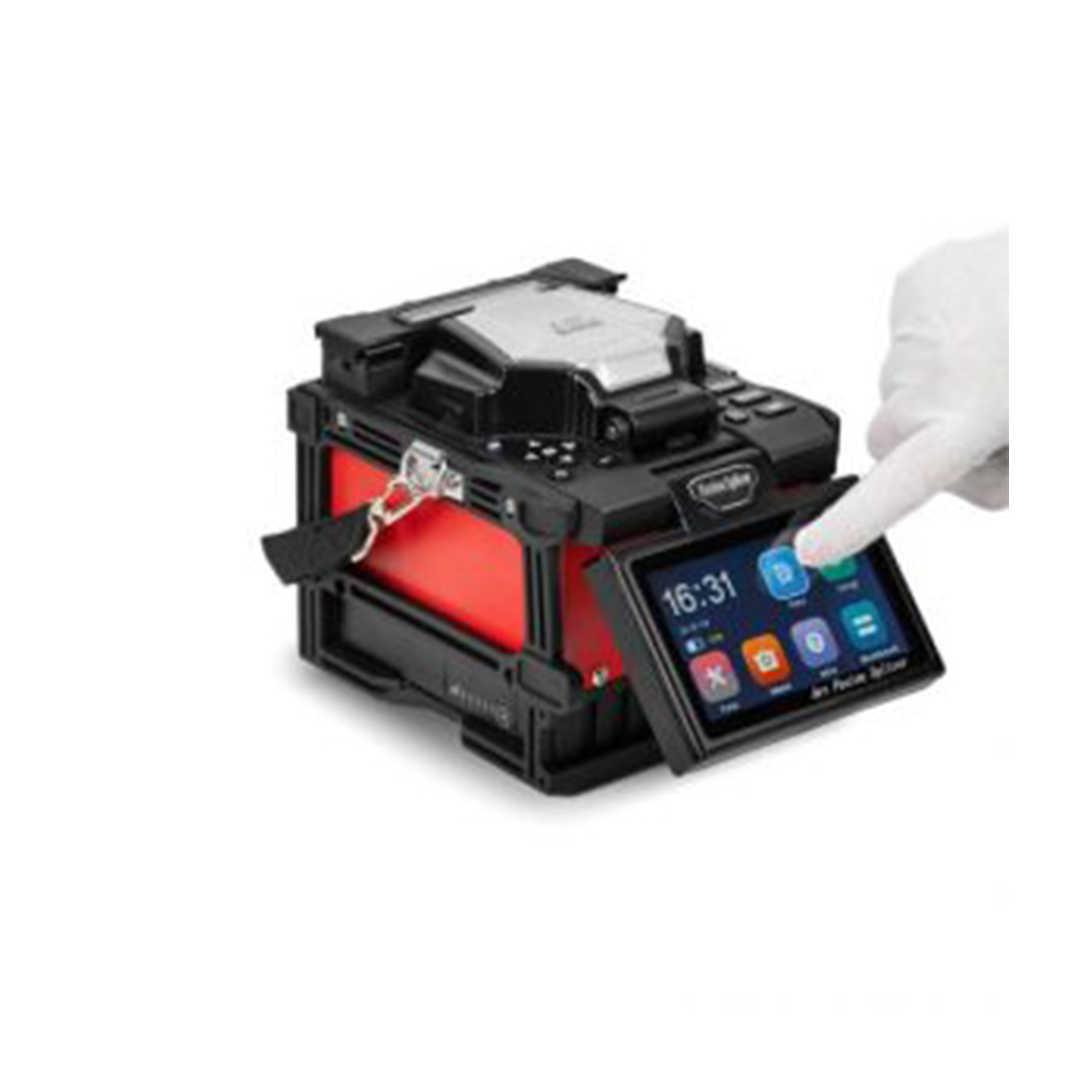

- Both touch screen and keypad applicable
- Automatic ARC calibration, easy for maintaining
- Inductive automatic heater, industrial quad-core CPU
- Big capacity battery, more than 250 cycles splice & heat
Specifications
| Applicable fiber | SM(ITU-T G.652),MM(ITU-T G.651),DS(ITU-T G.653),NZDS(ITU-T G.655), G.657 etc. |
| Diameter of cladding | 80 -150μm |
| Diameter of coating | 160-3000μm |
| Typical splice loss | SM: 0.02dB, MM: 0.01dB, DS: 0.04dB, NZDS: 0.04dB |
| Return loss | ＞ 60dB |
| Fibe cleaved length | 5-16mm ( coating diameter ＜ 250um), 16mm (coating diameter:250-1000um) |
| Splicing program | 40 groups |
| Operate mode | Automatic/Manual |
| Auto-heating | Available |
| Typical splicing time | 7 seconds |
| Typical heating time | 26 seconds |
| Fiber magnification | 320X (X or Y view), 160X (X and Y view) |

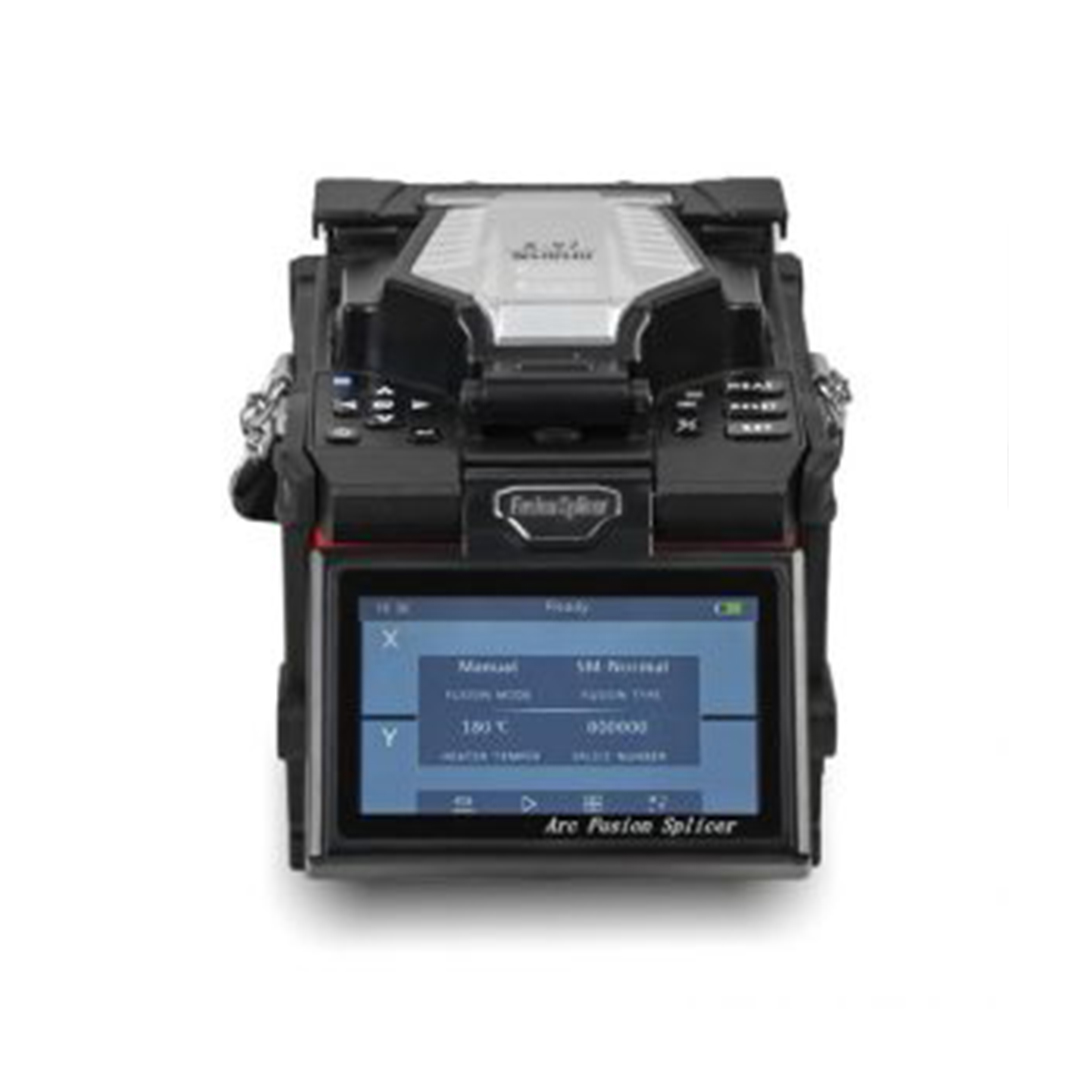

| Display screen | 4.3 inch color LCD monitor |
| Records storage | 8000 results |
| Loss evaluation | Available |
| Tension test | 1.8-2.2N |
| Interface | GUI menu interface, easy for operation |
| Battery | 5200mAh Li-battery, typical 250 cycles splicing and heating |
| Power supply | Adapter, input: AC 100-240V(50/50HZ), output: 11-13.5V |
| Electrodes life | More than 4000 ARC discharges, can be replaced vonveniently |
| Ternimal | USB2.0 port, for software upgrading and records exporting |
| Operating conditions | Altituede: 0-5000m, Humidity: 0-95%, Temperature: -10℃~+50℃, Wind speed: Max 15m/s |
| Dimension | 149mm(L) * 120mm(W) * 127mm(H) |
| Weight | 1.90kg (including battery) |
Standard Accessories
| NO. | ITEM |

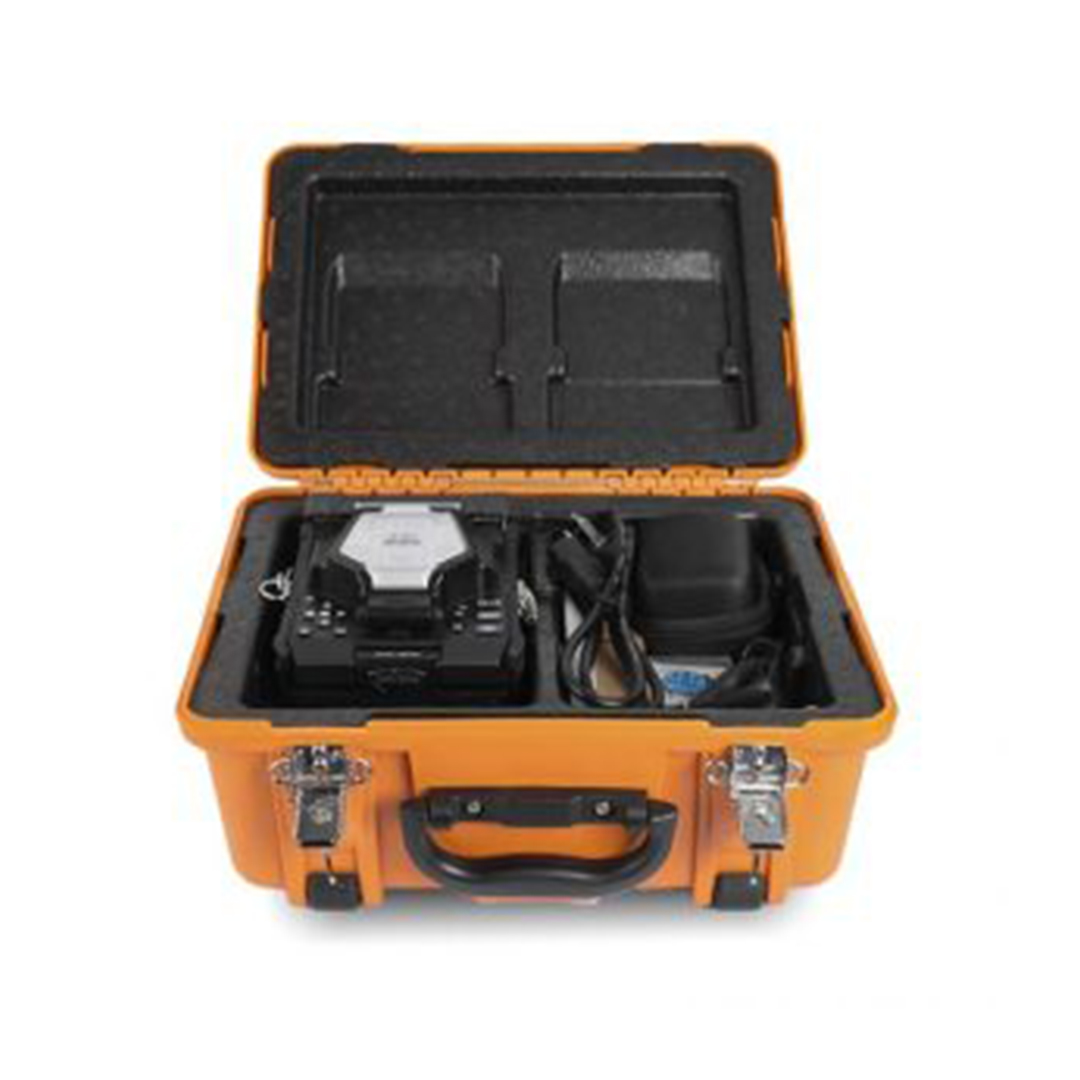

| 1 | Carrying box |
| 2 | Fiber cleaver |
| 3 | Fiber stripper |
| 4 | Drop cable stripper |
| 5 | Power cord |
| 6 | Adapter |
| 7 | Cooling tray |
| 8 | User manual (USB) |
| 9 | Spare electrodes |
| 10 | Cleaning tool kit |
| 11 | Strap |
