Model: V2802RGW , Spec: 1*GE+1FE+WiFi 4
Description

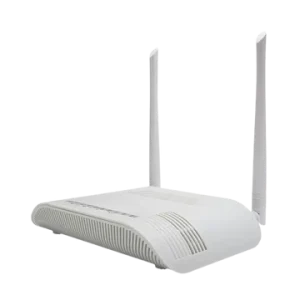

Product Description: V2802RGW ONU
The V2802RGW ONU (Optical Network Unit) is a compact and powerful device that offers a range of connectivity options for your home or small business. With its sleek design and robust features, this ONU is perfect for those seeking reliable and high-speed internet connectivity.
Key Features:
-
1 Gigabit Ethernet Port: High-speed internet connectivity for devices
-
1 Fast Ethernet Port: Additional connectivity option for devices
-
WiFi: Wireless connectivity for devices, enabling flexible networking
-
4 WiFi Antennas: Enhanced wireless coverage and stability
Product Specifications:
-
Model: V2802RGW
-
Type: 1GE + 1FE WiFi ONU
-
Specification: 1*GE+1FE+WiFi 4
This ONU is designed to provide reliable, high-speed internet connectivity and wireless coverage, making it an ideal choice for those seeking a robust and versatile networking solution.
Specifications
| ○ Hardware Parameter | |
| Dimension | 185mm×120mm×34mm（L×W×H） |
| Net weight | 0.24Kg |
| Operating condition | l Operating temp: 0 ~ +50°C
l Operating humidity: 10 ~ 90% (non-condensed) |
| Storing condition | l Storing temp: -30 ~ +60°C
l Storing humidity: 10 ~ 90% (non-condensed) |
| Power adapter | DC 12V, 1A , external AC-DC power adaptor |
| Power supply | ≤ 7W |
| Interfaces | 1GE+1FE+WiFi 4 |
| Indicators | POWER、LOS、PON、GE、FE、WiFi |
| ○ Interface parameter | |
| PON interface | l 1 XPON port(EPON PX20+ & GPON Class B+)
l SC single mode, SC/UPC connector l TX optical power: 0～+4dBm l RX sensitivity: -27dBm l Overload optical power: -3dBm(EPON) or -8dBm (GPON) l Transmission distance: 20KM |
| WIFI interface | l IEEE802.11b/g/n (TX power:17dBm/16dBm /15dBm), Up to 300Mbps
l 2T2R, 5dBi external antenna l Support 13 Channels |
| LAN interface | 1*GE+1*FE,Auto-negotiation, RJ45 ports |
| ○ Function Data | |
| XPON mode | Dual Mode, Can access EPON/GPON mainstream OLTs |
| Uplink mdoe | Bridging and Routing Mode |
| Firewall | Filtering Based on ACL/MAC/URL |
| Layer2 | 802.1D&802.1ad bridge,802.1p Cos,802.1Q VLAN |
| Layer3 | IPv4/IPv6 , DHCP Client/Server , PPPoE ,NAT , DMZ ,DDNS |
| Multicast | IGMP v1/v2/v3 , IGMP snooping |
| Security | Flow & Storm control, Loop Detection |
| O&M | l WEB/TELNET/OAM/OMCI
l Support private OAM/OMCI protocol l Unified network management of VSOL OLT |
| WiFi | l Authentication:WEP/WAP-PSK(TKIP)/WAP2-PSK(AES)
l Support multiple SSID |
