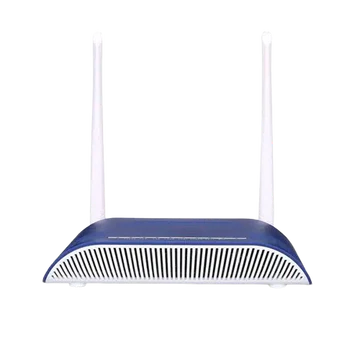

1GE+1FE+1POTS+WiFi ONU

Category: ONU/ONT

Description
Reviews (0)

Model: HG323RGW , Spec: 1*GE+1FE+1POTS+WiFi 4

Description

The HG323RGW is a compact and versatile Optical Network Unit (ONU) device that offers a reliable and fast internet connectivity solution. With its advanced features and lightweight design, it is ideal for homes, small businesses, and enterprises.

Key Features:

1 Gigabit Ethernet (GE) port for high-speed internet access
1 Fast Ethernet (FE) port for additional device connectivity
1 POTS (Plain Old Telephone Service) port for voice connectivity
WiFi 4 (802.11n) support for wireless connectivity
Compact and lightweight design (240g)

Technical Specifications:

Model: HG323RGW
Interface: 1 GE + 1 FE + 1 POTS + WiFi 4
WiFi Standards: 802.11n
Power Supply: DC 12V, 1A
Dimensions: 120mm x 90mm x 25mm
Operating Temperature: 0°C to 40°C
Humidity: 5% to 90% non-condensing

Specifications

○ Hardware Parameter
Dimension	185mm×120mm×34m(L×W×H)
Net weight	0.24Kg
Operating condition	Operating temp: 0 ~ +50°C Operating humidity: 10 ~ 90% (non-condensed)
Storing condition	Storing temp: -30 ~ +60°C Storing humidity: 10 ~ 90% (non-condensed)
Power adapter	DC 12V/1A, external AC-DC power adaptor
Power supply	≤6W
Interfaces	1GE+1FE+1POTS+WiFi 4
Indicators	PWR, PON,LOS,LAN1~LAN2,PHONE,Pair,WiFi

○ Interface parameter
PON interface	1XPON port(EPON PX20+ and GPON Class B+) SC single mode, SC/UPC connector TX optical power: 0～+4dBm RX sensitivity: -27dBm Overload optical power: -3dBm(EPON) or -8dBm(GPON) Transmission distance: 20KM Wavelength: TX 1310nm, RX1490nm
WIFI interface	IEEE802.11b/g/n (TX power: 17dBm/16dBm/ 15dBm), Up to 300Mbps 2T2R, 5dBi external antenna Support 13 Channels
User interface	1GE+1FE,Auto-negotiation, RJ45 connectors 1POTS, RJ11 connectors

○ Function Data
PON mode	Dual Mode , Can access EPON/GPON OLTs (HUAWEI,ZTE,FiberHome, etc)
Uplink mode	Bridging and Routing Mode
Layer2	802.1D&802.1ad bridge,802.1p Cos, 802.1Q VLAN
Layer3	IPv4/IPv6 , DHCP Client/Server , PPPoE，NAT , DMZ ,DDNS
Multicast	IGMPv1/v2/v3 , IGMP snooping
Security	Flow & Storm control, Loop Detection
WiFi	Authentication:WEP/WAP-PSK(TKIP)/ WAP2-PSK(AES) Support: multiple SSID
VoIP	SIP and IMS SIP G.711a/G.711u/G.722/G.729 Codec Echo cancellation,VAD/CNG,DTMF Relay T.30/T.38 FAX Caller Identification/Call Waiting/Call Forwarding /Call Transfer/Call Hold/3-way Conference Line testing according to GR-909
Firewall	Filtering Based on ACL/MAC/URL
O&M	WEB/TELNET/OAM/OMCI/TR069 Support private OAM/OMCI protocol and Unified network management of VSOL OLT
